Display module
STC2004AR (Character LCD)
Teilenummer STC2004AR
Größe4.3"
Aufl.20 Characters x 4 Lines
IF6800 Parallel (MPU)
Treiber-ICCustom
Hell.LED backlight
TouchNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
Interface6800 Parallel (MPU)
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Spezifikationen
Größe4.3"
Aufl.20 Characters x 4 Lines
IF6800 Parallel (MPU)
Treiber-ICCustom
Betriebstemp.-20°C ~ +70°C
TouchNo TP
Hell.LED backlight
VA—

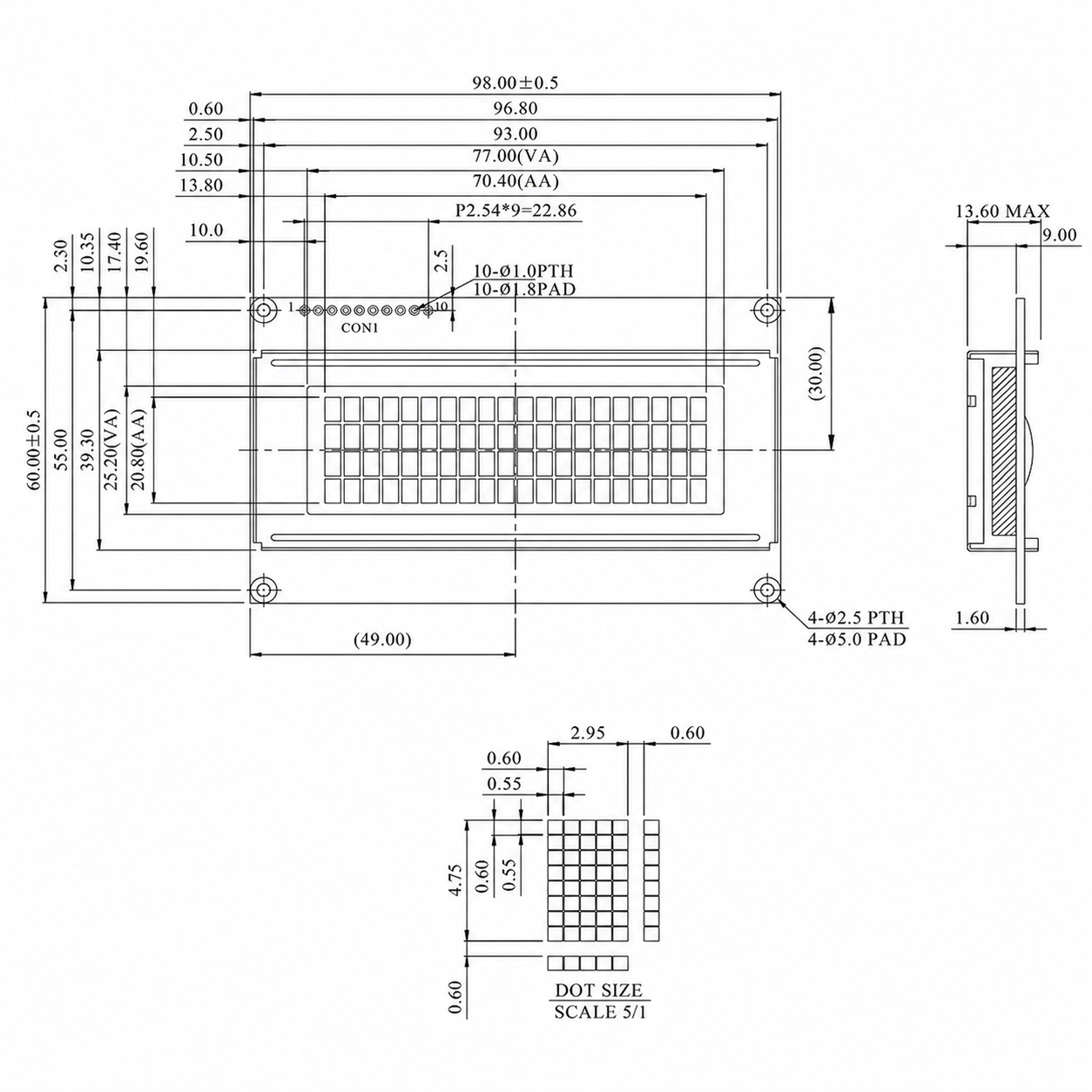

Gehäusemaß98.0 x 60.0 x 13.6(MAX) mm
Sterne—
Aktivfläche (mm)70.4 x 20.8 mm
Number of Characters20 Characters x 4 Lines
Module dimension98.0 x 60.0 x 13.6(MAX) mm
View area77.0 x 25.2 mm
Aktivfläche70.4 x 20.8 mm
Dot size0.55 x 0.55 mm
Dot pitch0.60 x 0.60 mm
Character size2.95 x 4.75 mm
Character pitch3.55 x 5.35 mm
Duty1/16
Backlight TypeLED
Controller ICST7066
SchnittstelleUART
Beschreibung
Character LCD module STC2004AR. Auflösung / format: 20 Characters x 4 Lines. Module: 98.0 x 60.0 x 13.6(MAX) mm. Schnittstelle: UART.
Application areas：Industrial

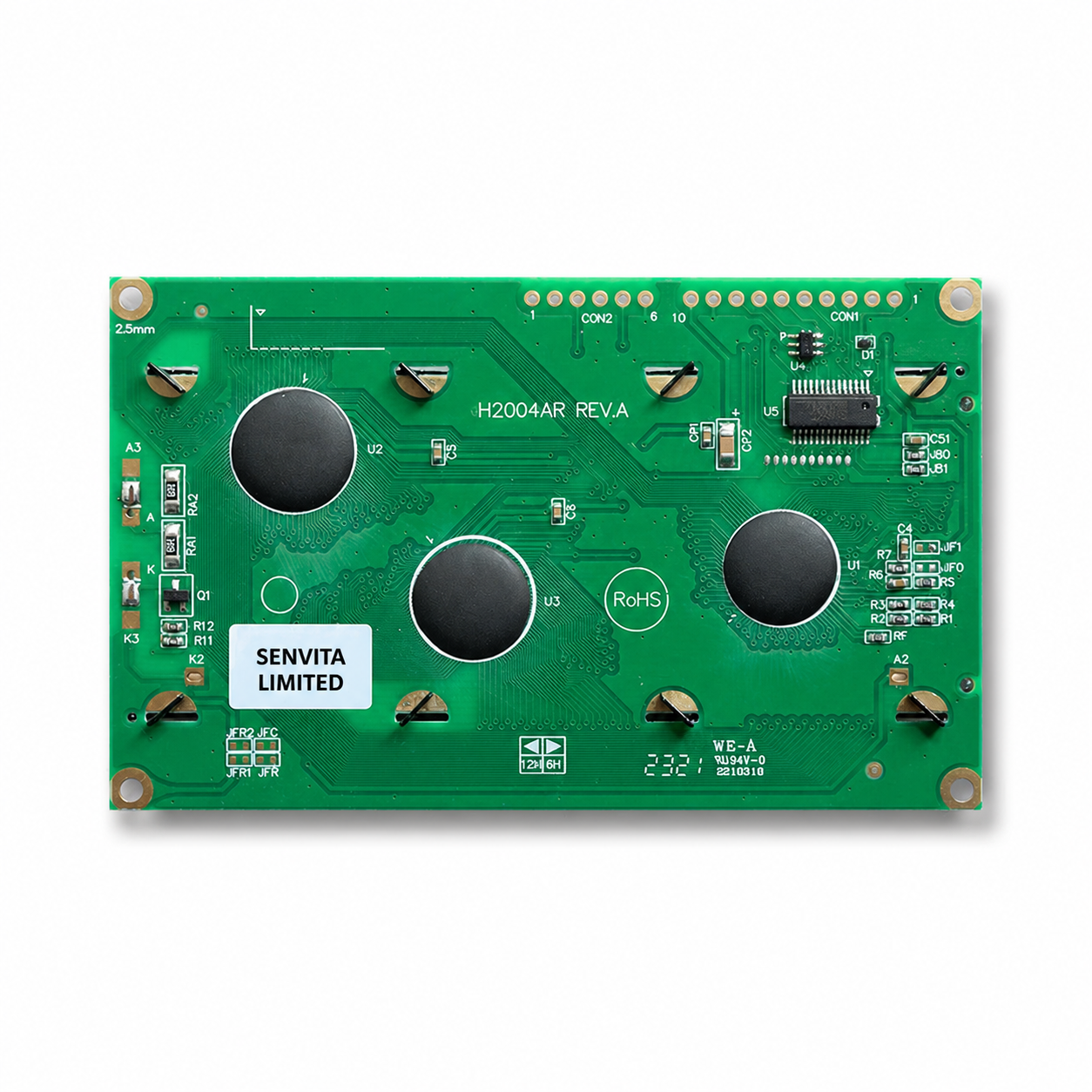

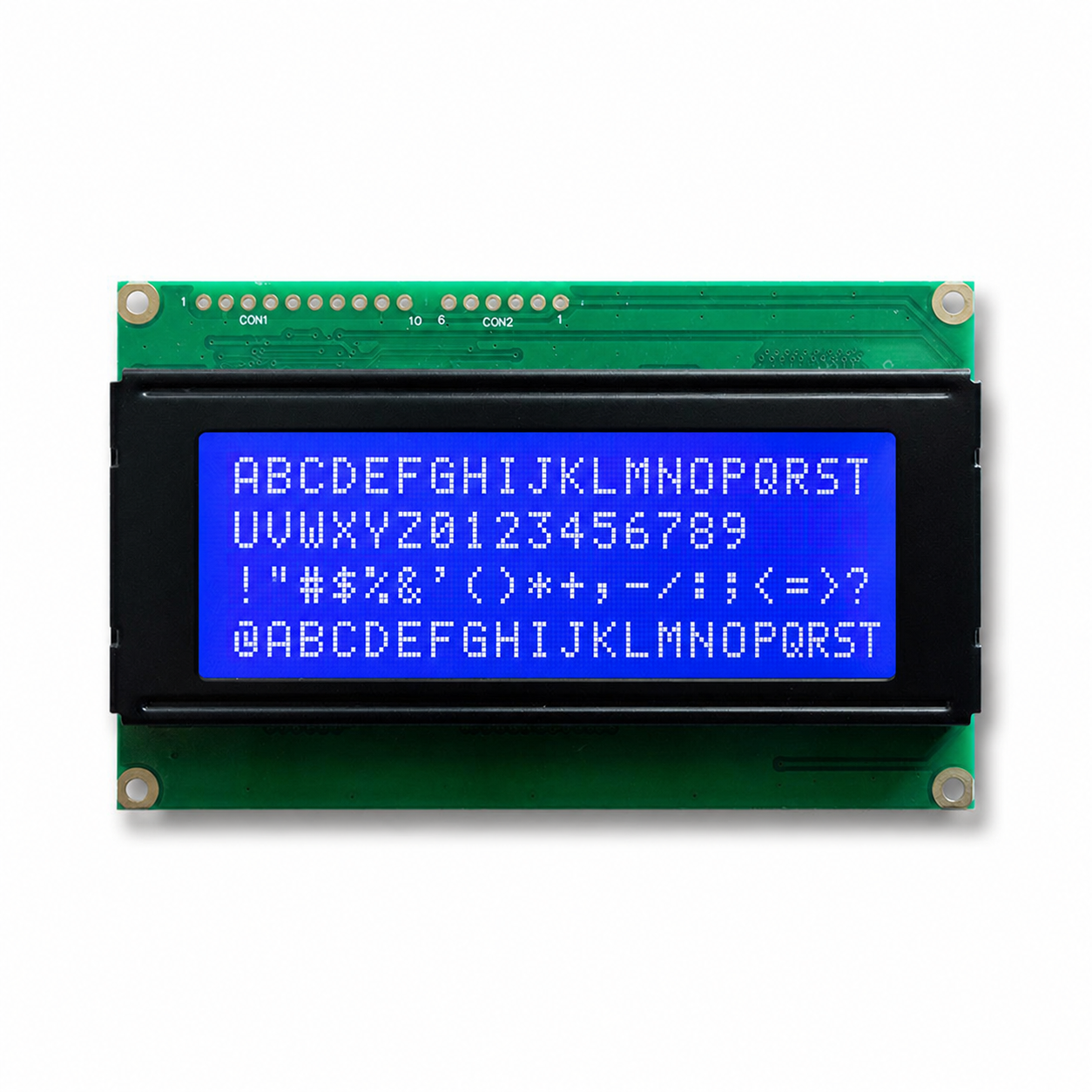

Product images
