Display module
STG14432D (Graphic LCD)
Teilenummer STG14432D
Größe3.5"
Aufl.144 x 32
IF6800 Parallel (MPU)
Treiber-ICCustom
Hell.LED backlight
TouchNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
Interface6800 Parallel (MPU)
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Spezifikationen
Größe3.5"
Aufl.144 x 32
IF6800 Parallel (MPU)
Treiber-ICCustom
Betriebstemp.-20°C ~ +70°C
TouchNo TP
Hell.LED backlight
VA—
Gehäusemaß85.0 x 30.0 x 13.2(Max) mm
Sterne—
Aktivfläche (mm)60.44 x 13.4 mm
Number of dots144 x 32

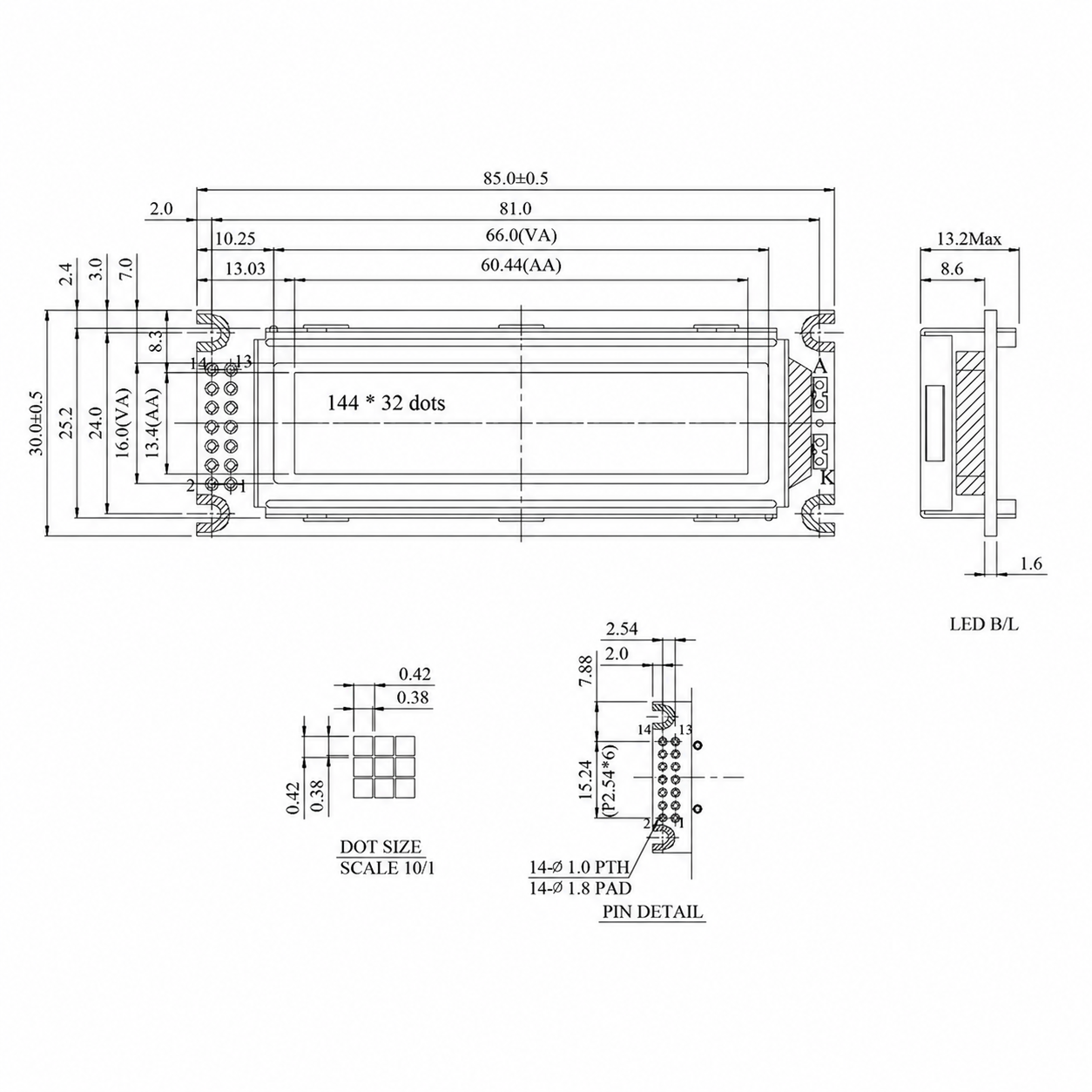

Module dimension85.0 x 30.0 x 13.2(Max) mm
View area66.0 x 16.0 mm
Aktivfläche60.44 x 13.4 mm
Dot size0.38 x 0.38 mm
Dot pitch0.42 x 0.42 mm
Duty1/32
Backlight TypeLED
ICST7920
Schnittstelle6800
Beschreibung
Graphic LCD module STG14432D. Auflösung / format: 144 x 32. Module: 85.0 x 30.0 x 13.2(Max) mm. Treiber-IC: ST7920. Schnittstelle: 6800.
Application areas：Industrial

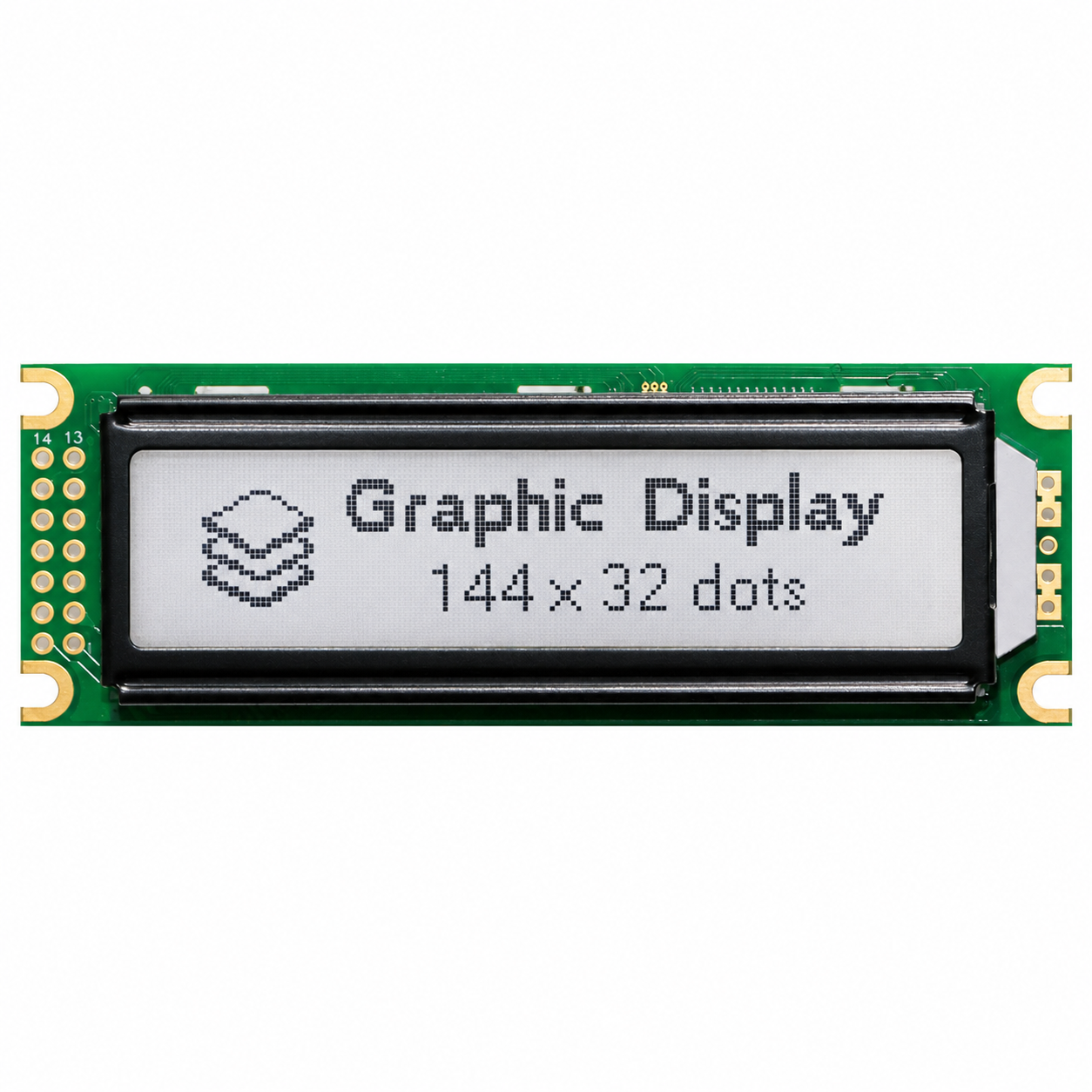

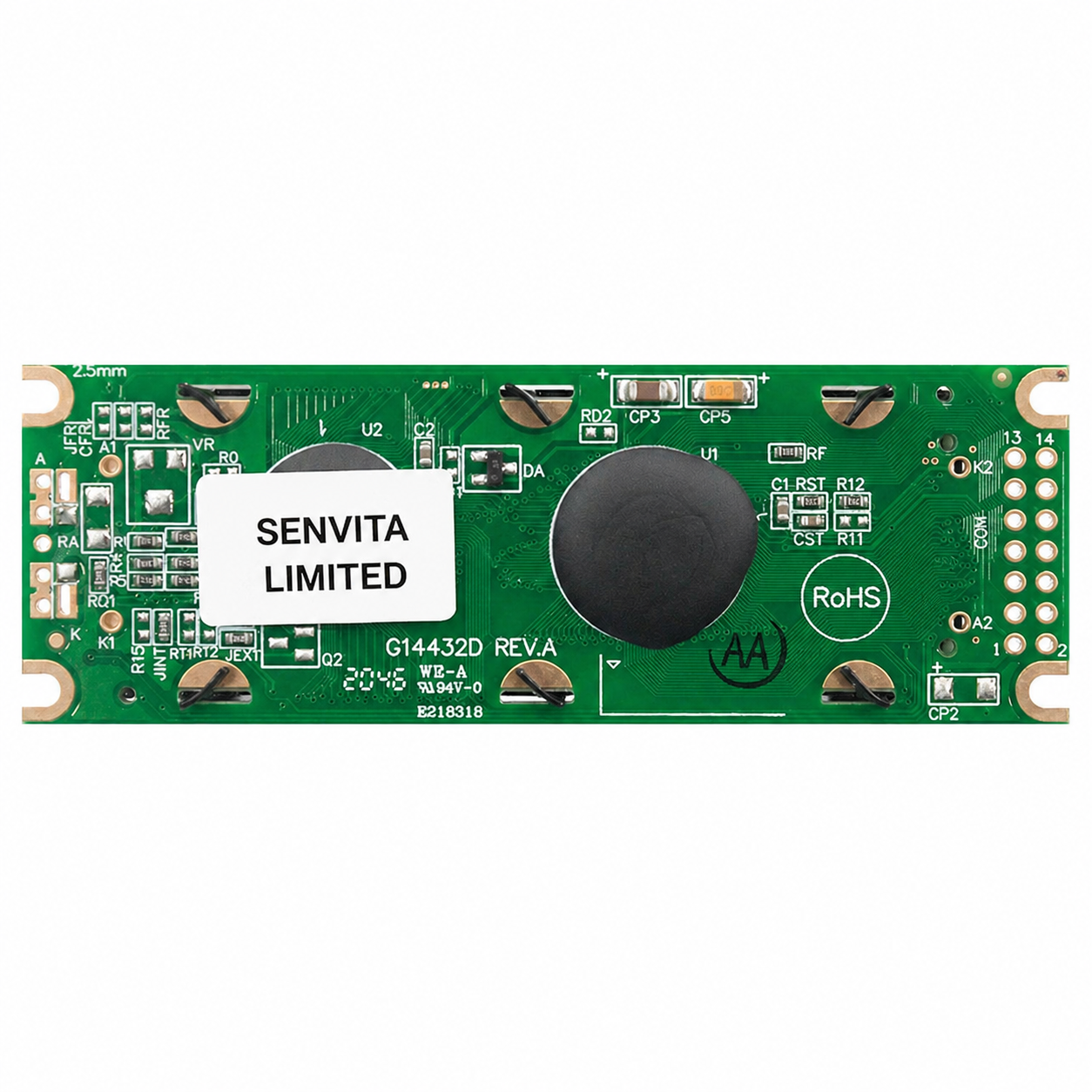

Product images
