Display module
STC1602S (Character LCD)
Артикул STC1602S
Размер2.4"
Разр.16 Characters x 2 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер2.4"
Разр.16 Characters x 2 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—

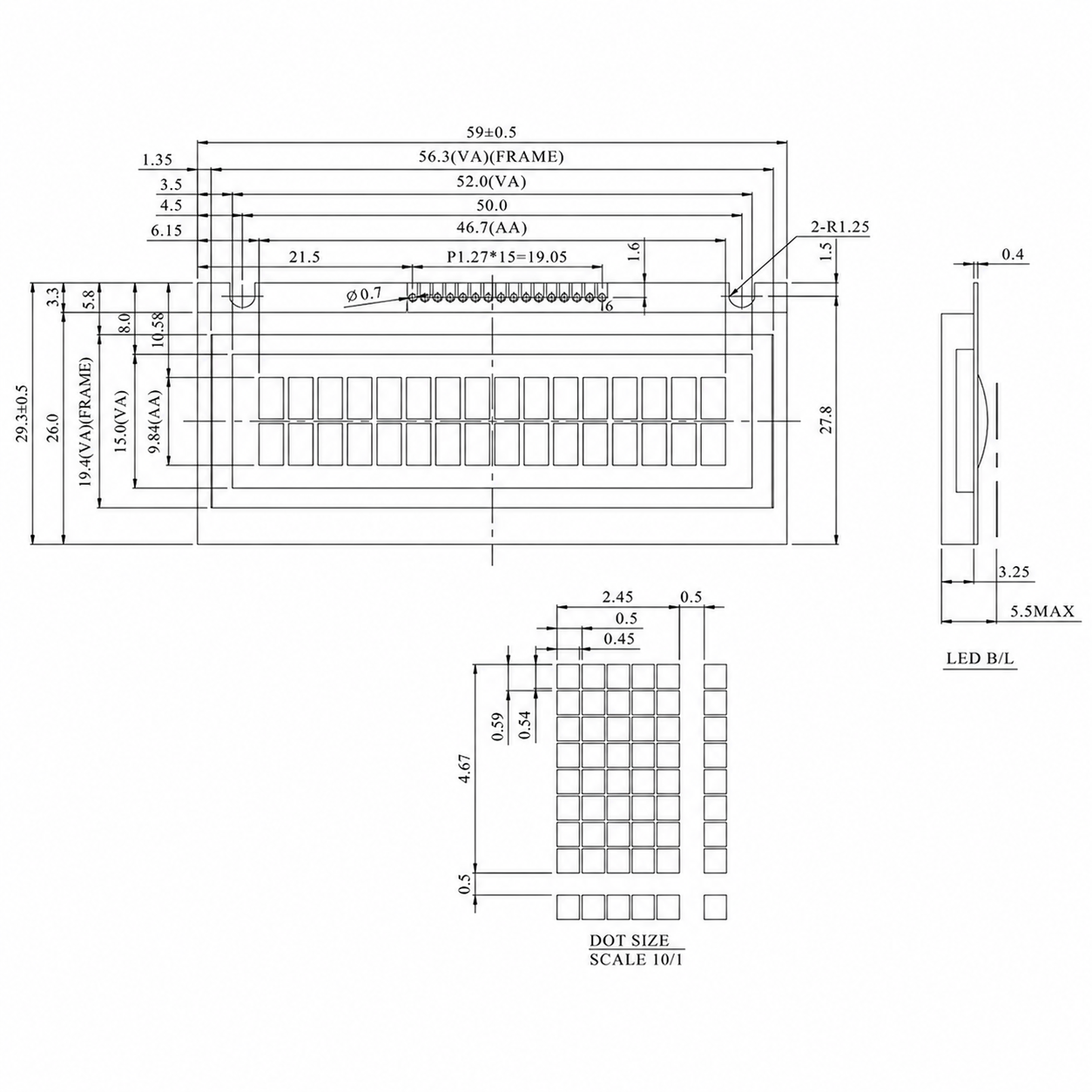

Габар. мм59.0 x 29.3 x 5.5 (MAX) mm
Рейтинг—
Активная область (мм)46.7 x 9.84 mm
Number of Characters16 Characters x 2 Lines
Module dimension59.0 x 29.3 x 5.5 (MAX) mm
View area52.0 x 15.0 mm
Активная область46.7 x 9.84 mm
Dot size0.45 x 0.54 mm
Dot pitch0.50 x 0.59 mm
Character size2..45 x 4.67 mm
Character pitch2.95 x 5.17 mm
Duty1/16
Backlight TypeLED
ICST7066U
Интерфейс6800
Описание
Character LCD module STC1602S. разрешение / format: 16 Characters x 2 Lines. Module: 59.0 x 29.3 x 5.5 (MAX) mm. драйвер: ST7066U. интерфейс: 6800.
Application areas：Industrial

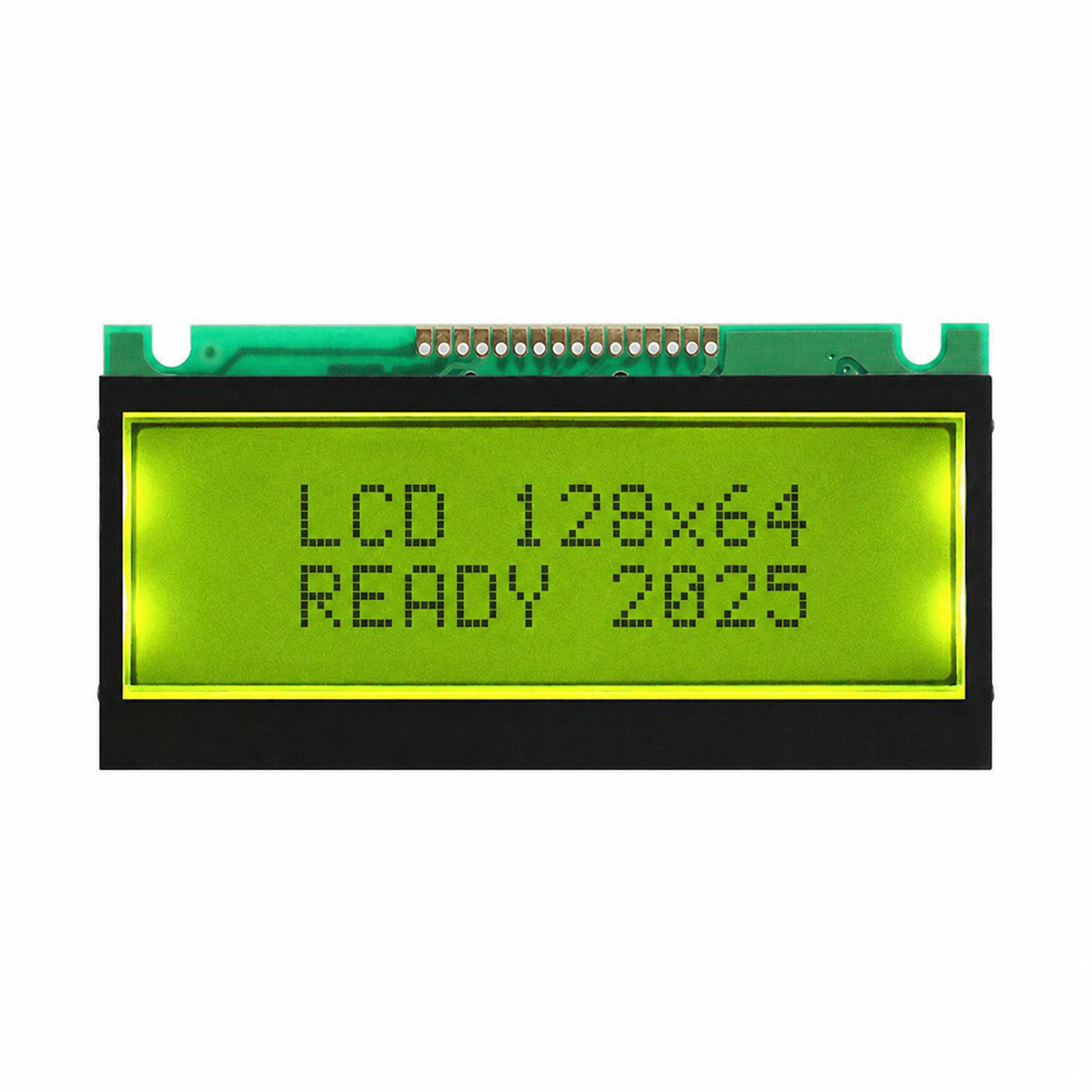

Product images
