Display module
STC1604A (Character LCD)
Артикул STC1604A
Размер4.3"
Разр.16 Characters x 4 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер4.3"
Разр.16 Characters x 4 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—

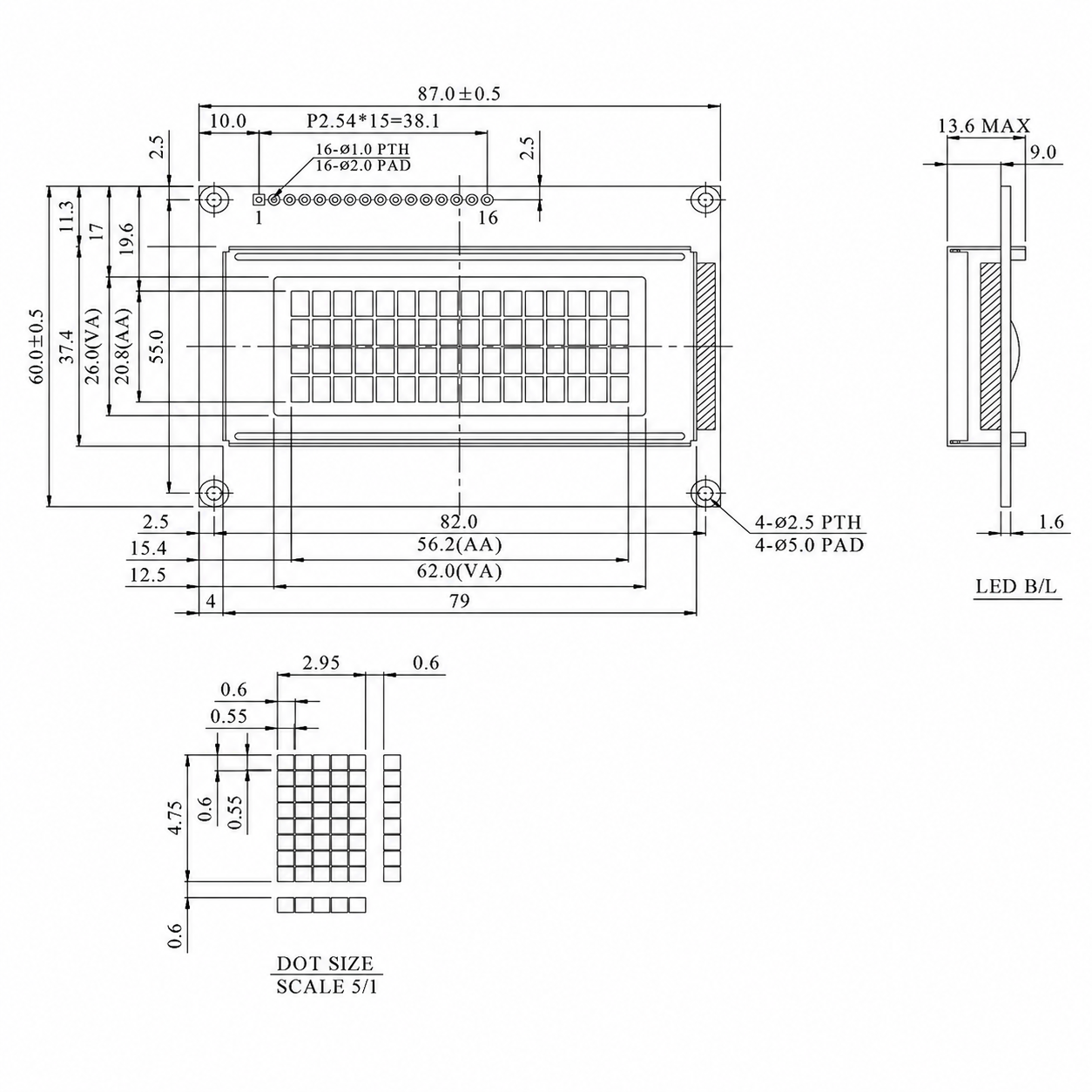

Габар. мм87.0 x 60.0 x 13.6 (MAX) mm
Рейтинг—
Активная область (мм)56.2 x 20.8 mm
Number of Characters16 Characters x 4 Lines
Module dimension87.0 x 60.0 x 13.6 (MAX) mm
View area62.0 x 26.0 mm
Активная область56.2 x 20.8 mm
Dot size0.55 x 0.55 mm
Dot pitch0.60 x 0.60 mm
Character size2.95 x 4.75 mm
Character pitch3.55 x 5.35 mm
Duty1/16
Backlight TypeLED
ICST7066U
Интерфейс6800
Описание
Character LCD module STC1604A. разрешение / format: 16 Characters x 4 Lines. Module: 87.0 x 60.0 x 13.6 (MAX) mm. драйвер: ST7066U. интерфейс: 6800.
Application areas：Industrial

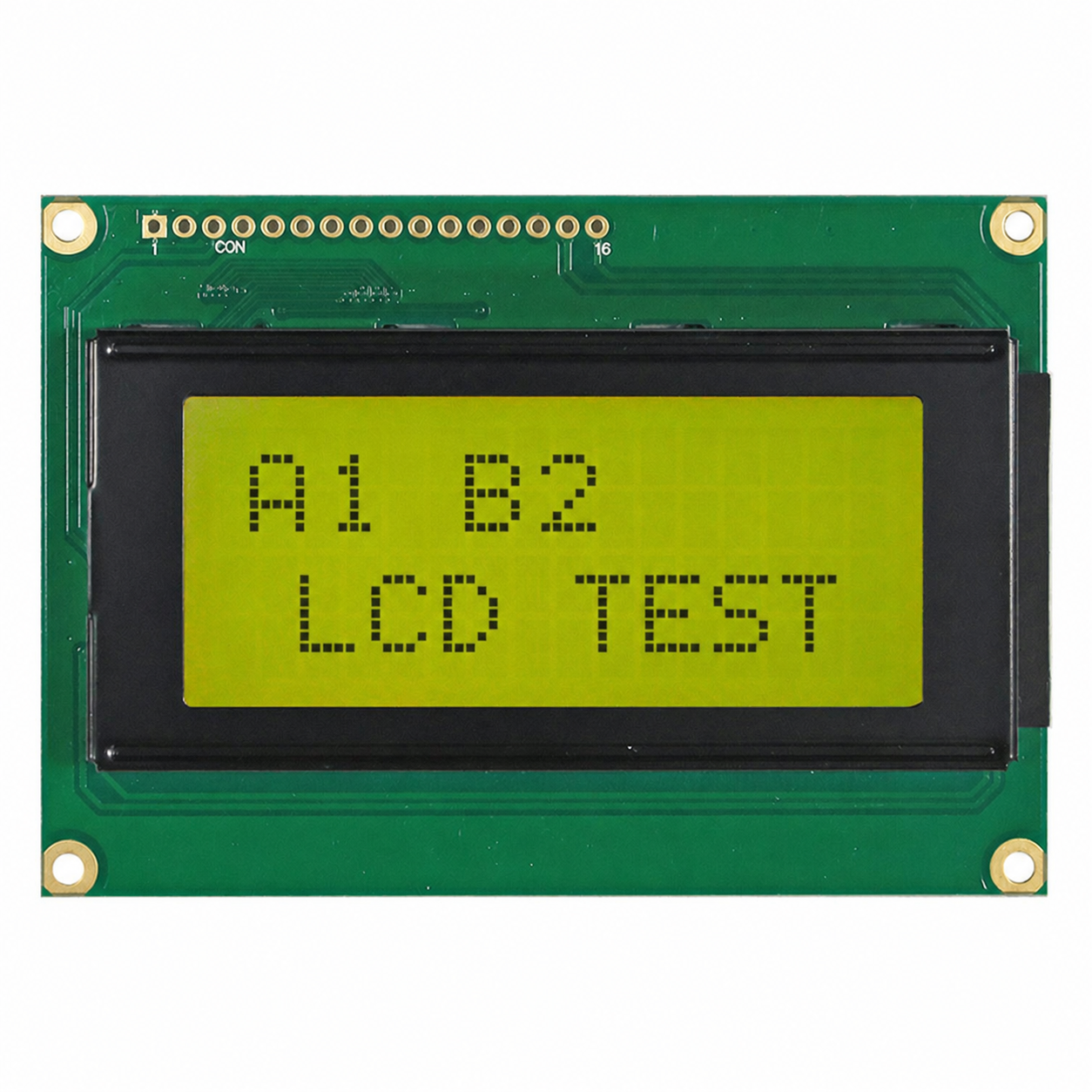

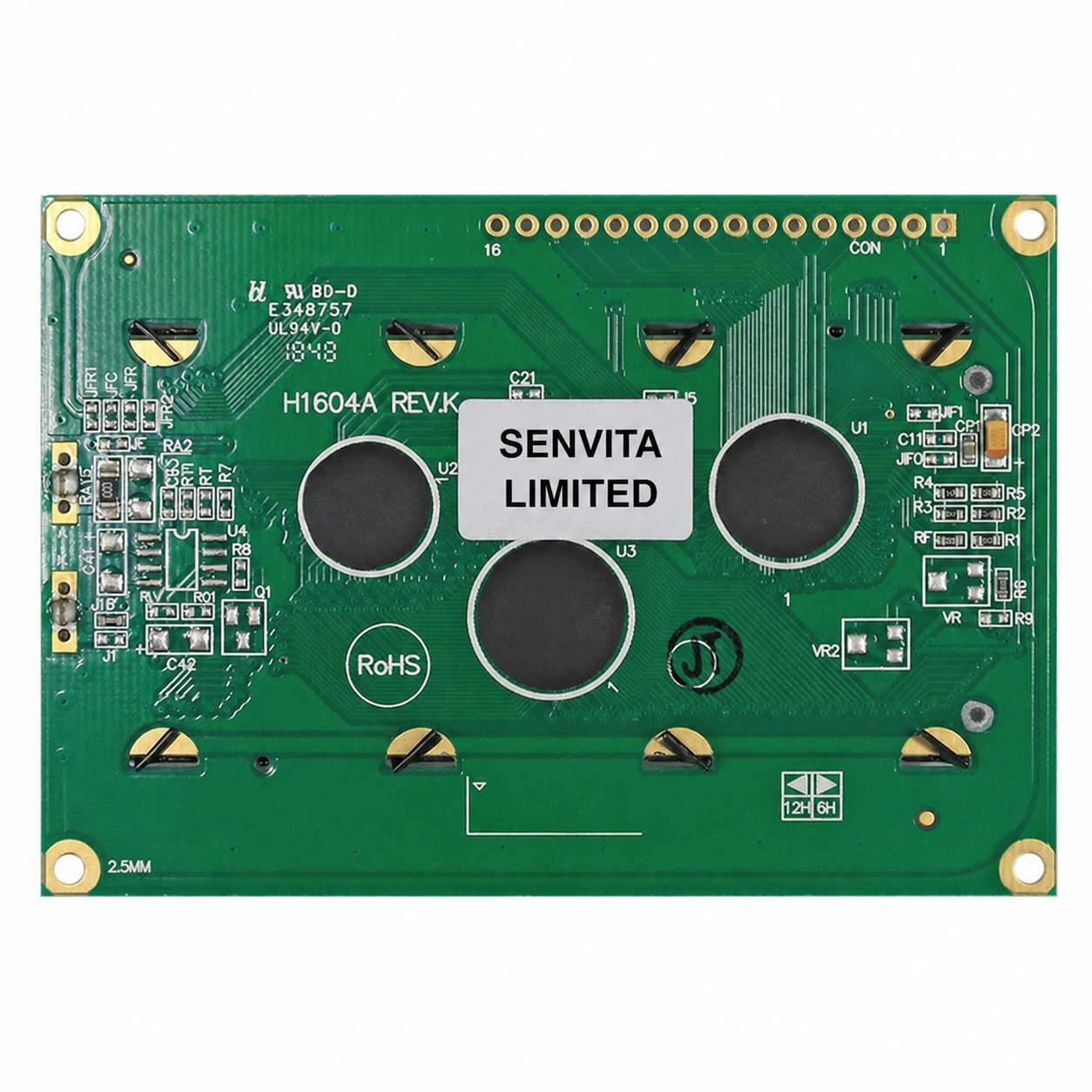

Product images
