Display module
STG320240BP3 (Graphic LCD)
Артикул STG320240BP3
Размер7.0"
Разр.320 × 240
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер7.0"
Разр.320 × 240
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—
Габар. мм160.0 × 109.0 × 12.5(MAX) mm
Рейтинг—
Активная область (мм)115.18 × 86.38 mm
Number of dots320 × 240
Module dimension160.0 × 109.0 × 12.5(MAX) mm
View area122.0 × 92.0 mm
Активная область115.18 × 86.38 mm
Dot size0.33 × 0.33 mm
Dot pitch0.36 × 0.36 mm
Duty1/240
Backlight TypeLED
ICS1D13700
Описание
Graphic LCD module STG320240BP3. разрешение / format: 320 × 240. Module: 160.0 × 109.0 × 12.5(MAX) mm. драйвер: S1D13700.
Application areas：Industrial

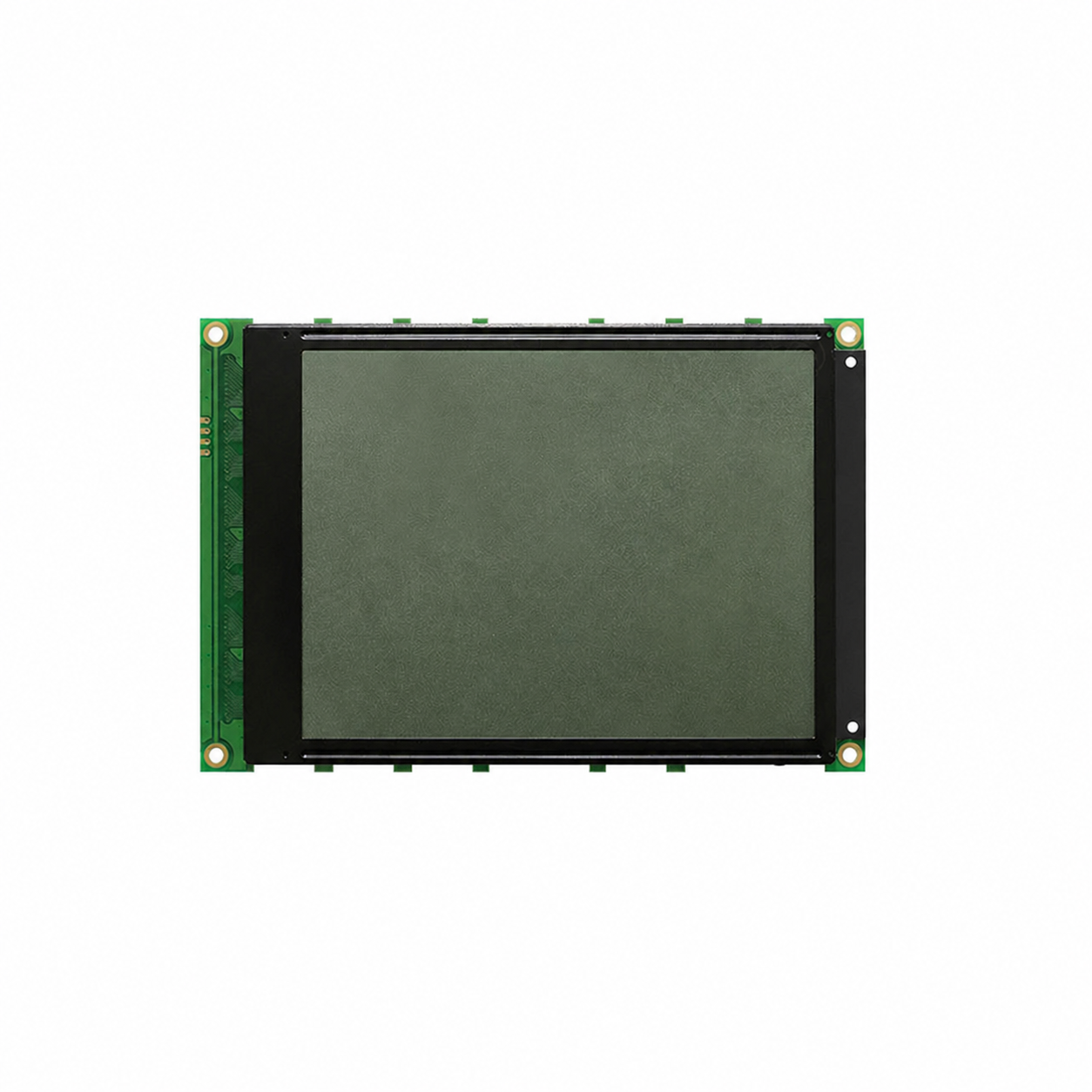

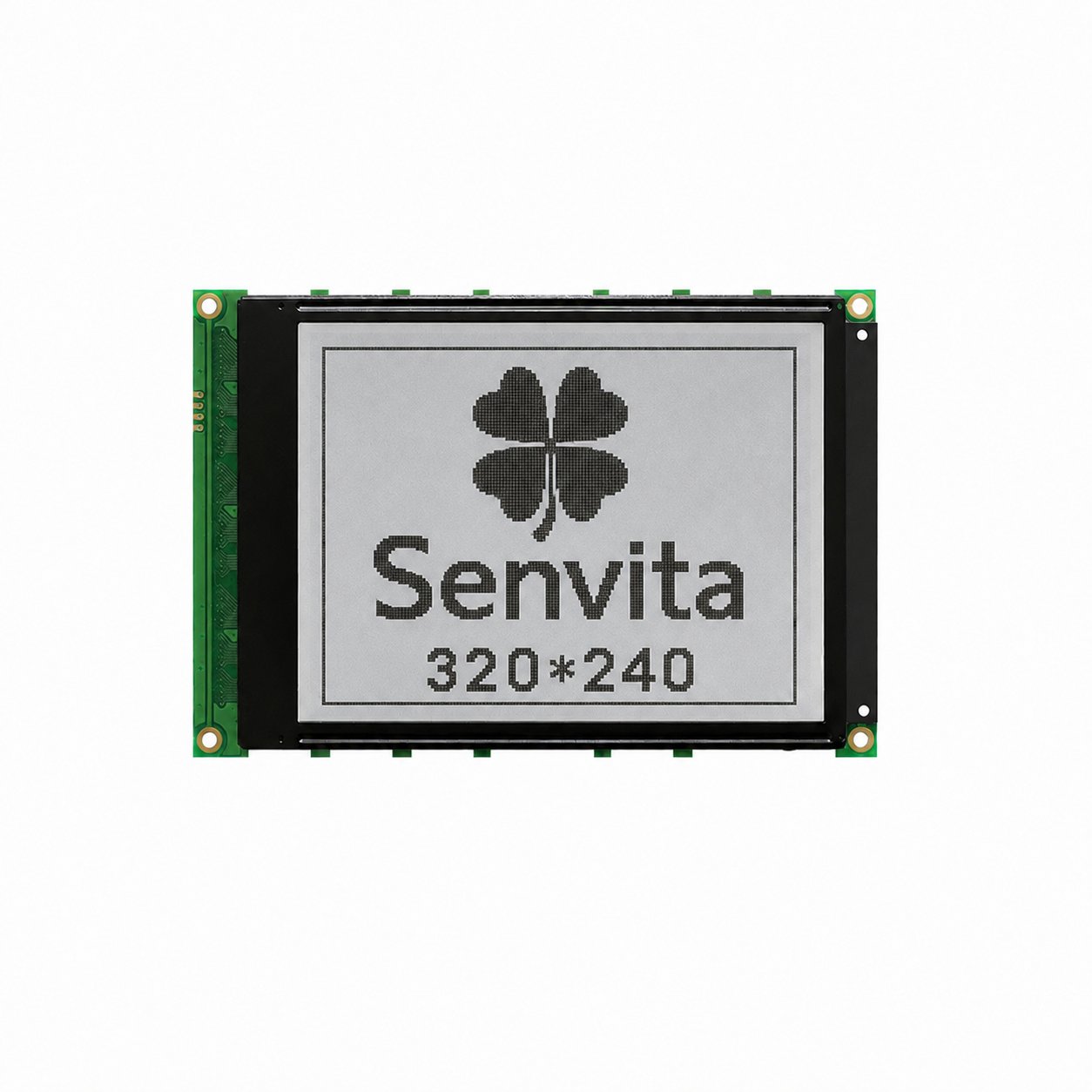

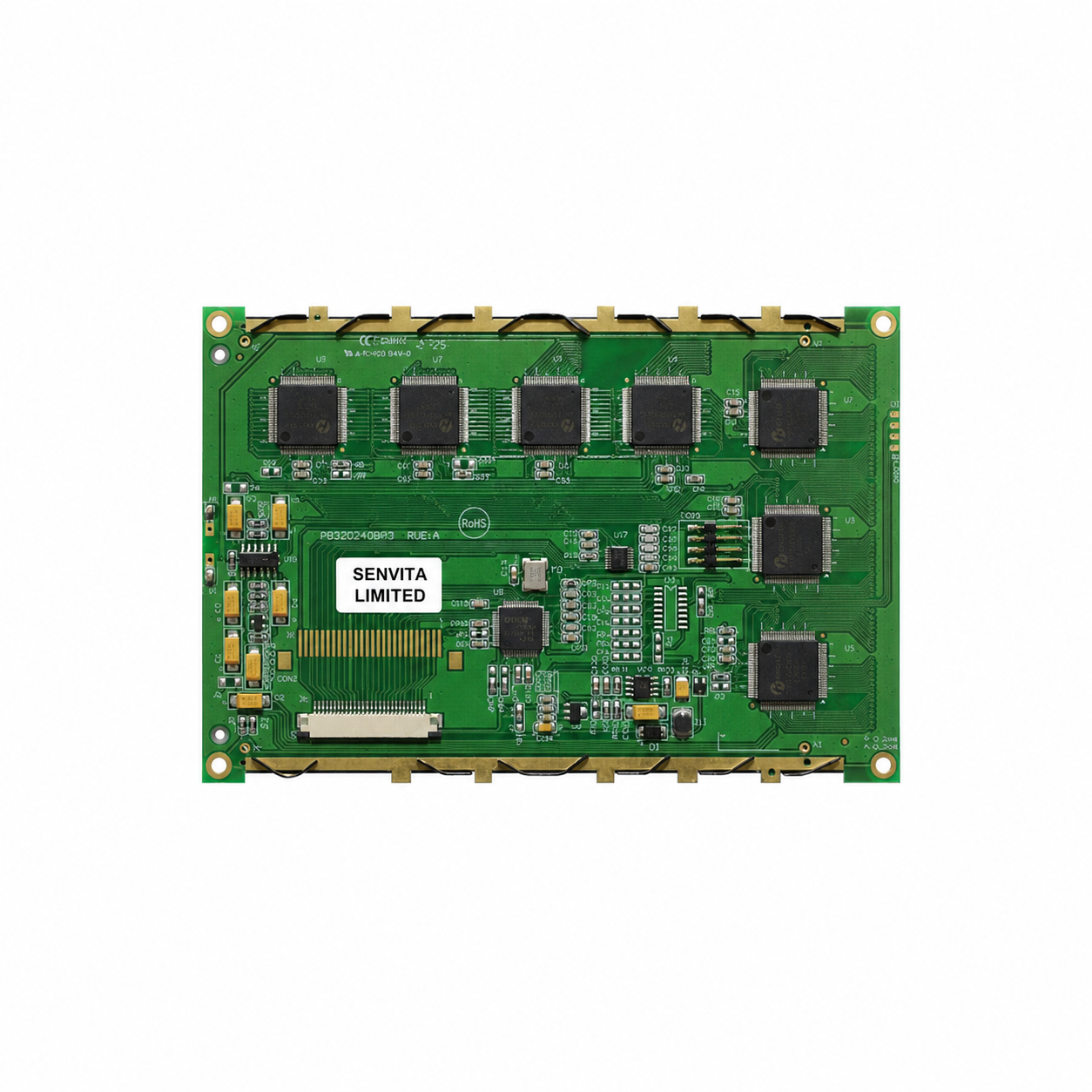

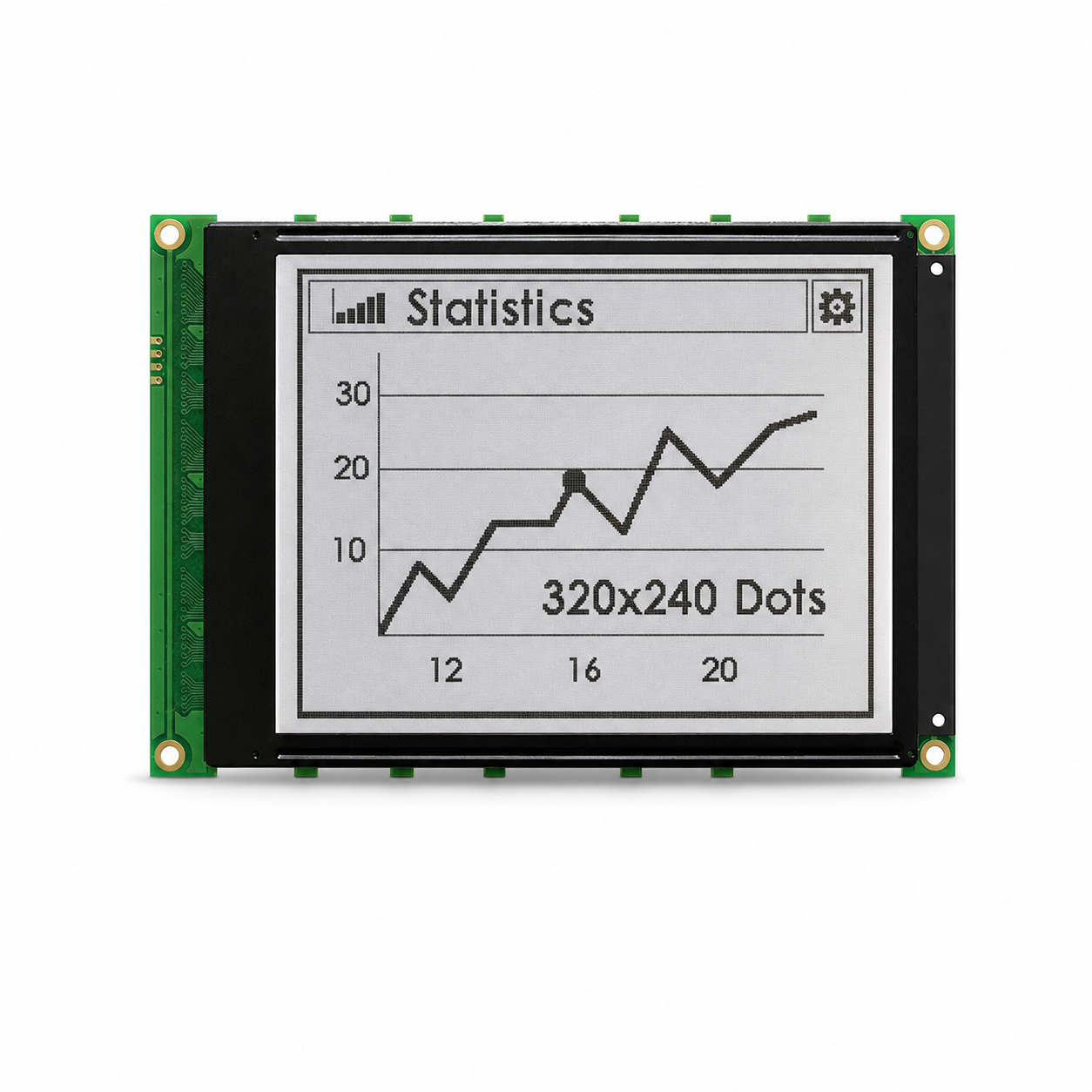

Product images
