Display module
STC2002L (Character LCD)
Teilenummer STC2002L
Größe7.0"
Aufl.20 Characters x 2 Lines
IF6800 Parallel (MPU)
Treiber-ICCustom
Hell.LED backlight
TouchNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
Interface6800 Parallel (MPU)
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Spezifikationen
Größe7.0"
Aufl.20 Characters x 2 Lines
IF6800 Parallel (MPU)
Treiber-ICCustom
Betriebstemp.-20°C ~ +70°C
TouchNo TP
Hell.LED backlight
VA—

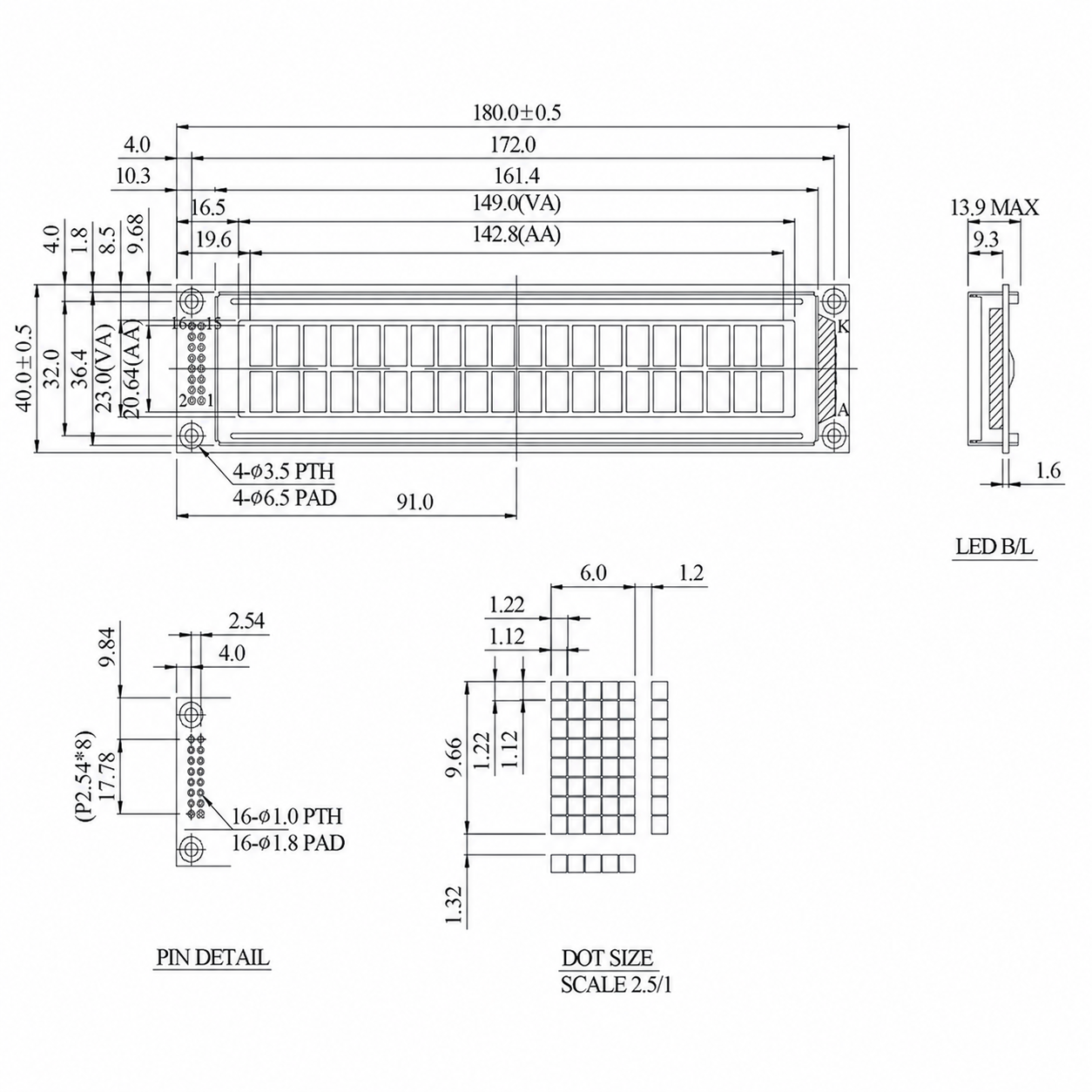

Gehäusemaß180.0 x 40.0 x 13.9 (MAX) mm
Sterne—
Aktivfläche (mm)142.8 x 20.64 mm
Number of Characters20 Characters x 2 Lines
Module dimension180.0 x 40.0 x 13.9 (MAX) mm
View area149.0 x 23.0 mm
Aktivfläche142.8 x 20.64 mm
Dot size1.12 x 1.12 mm
Dot pitch1.22 x 1.22 mm
Character size6.0 x 9.66 mm
Character pitch7.2 x 10.98 mm
Duty1/16
Backlight TypeLED
ICST7066U
Schnittstelle6800
Beschreibung
Character LCD module STC2002L. Auflösung / format: 20 Characters x 2 Lines. Module: 180.0 x 40.0 x 13.9 (MAX) mm. Treiber-IC: ST7066U. Schnittstelle: 6800.
Application areas：Industrial

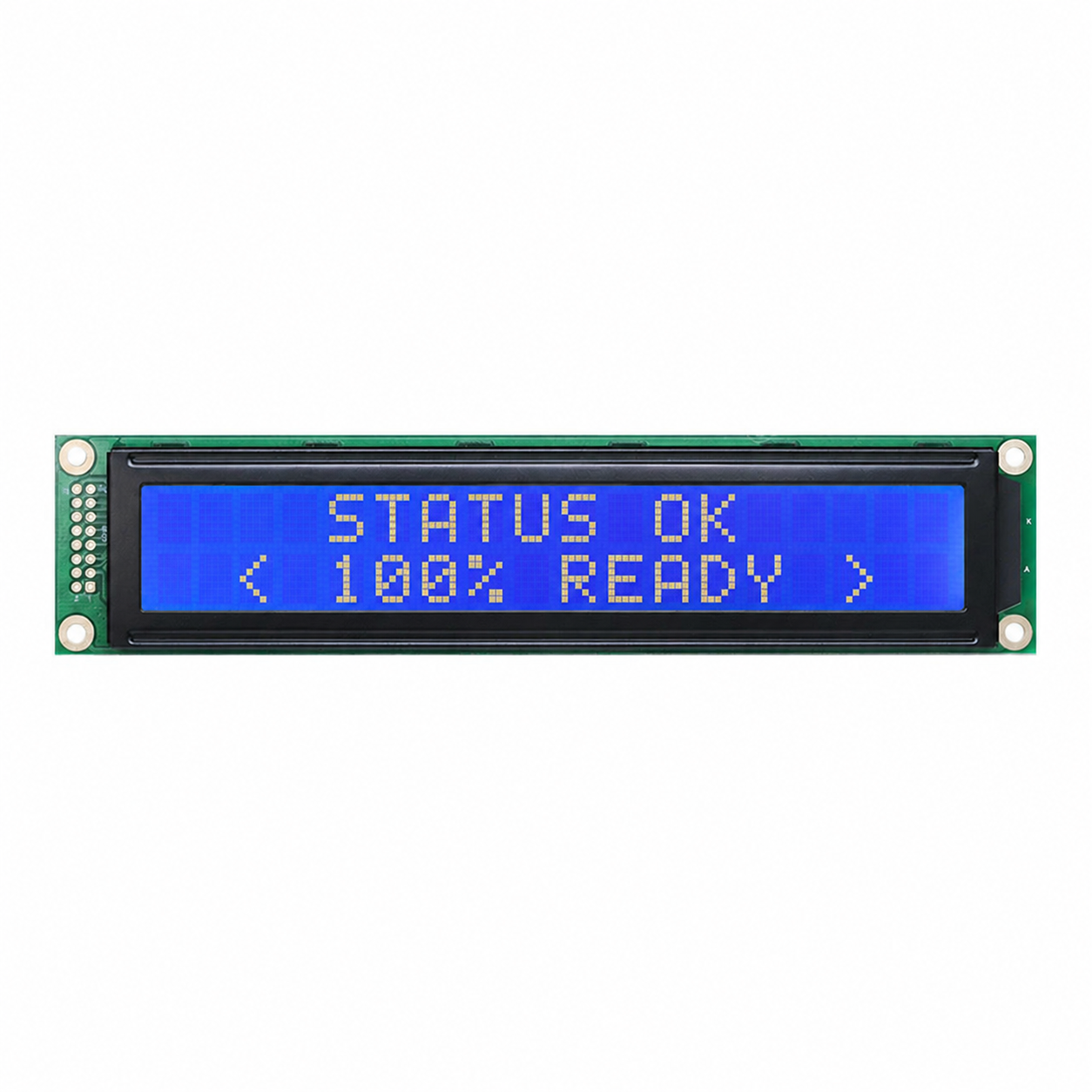

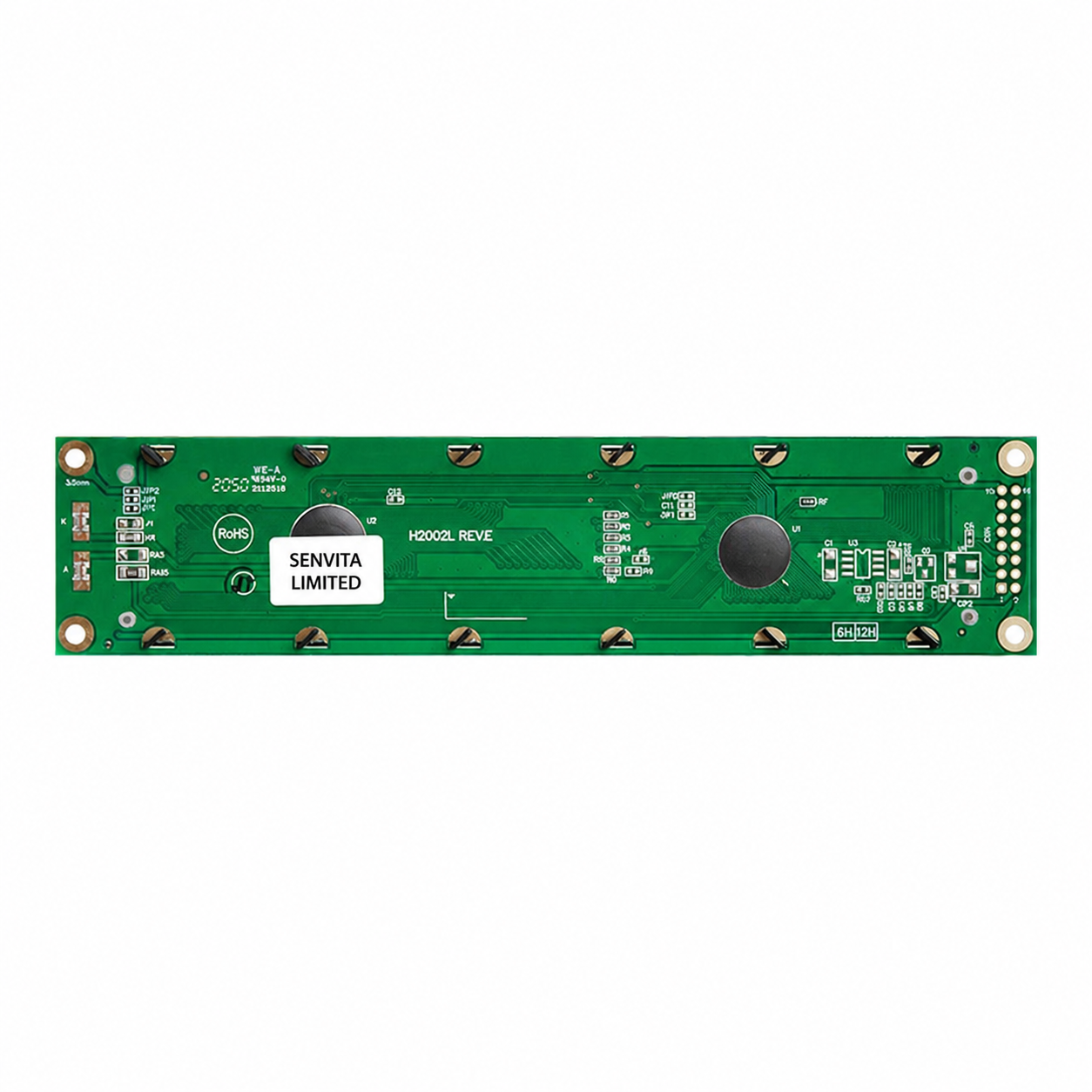

Product images
