Display module
STC1602BU (Character LCD)
Артикул STC1602BU
Размер3.5"
Разр.16 Characters × 2 Lines
Инт.USB
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceUSB
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер3.5"
Разр.16 Characters × 2 Lines
Инт.USB
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—

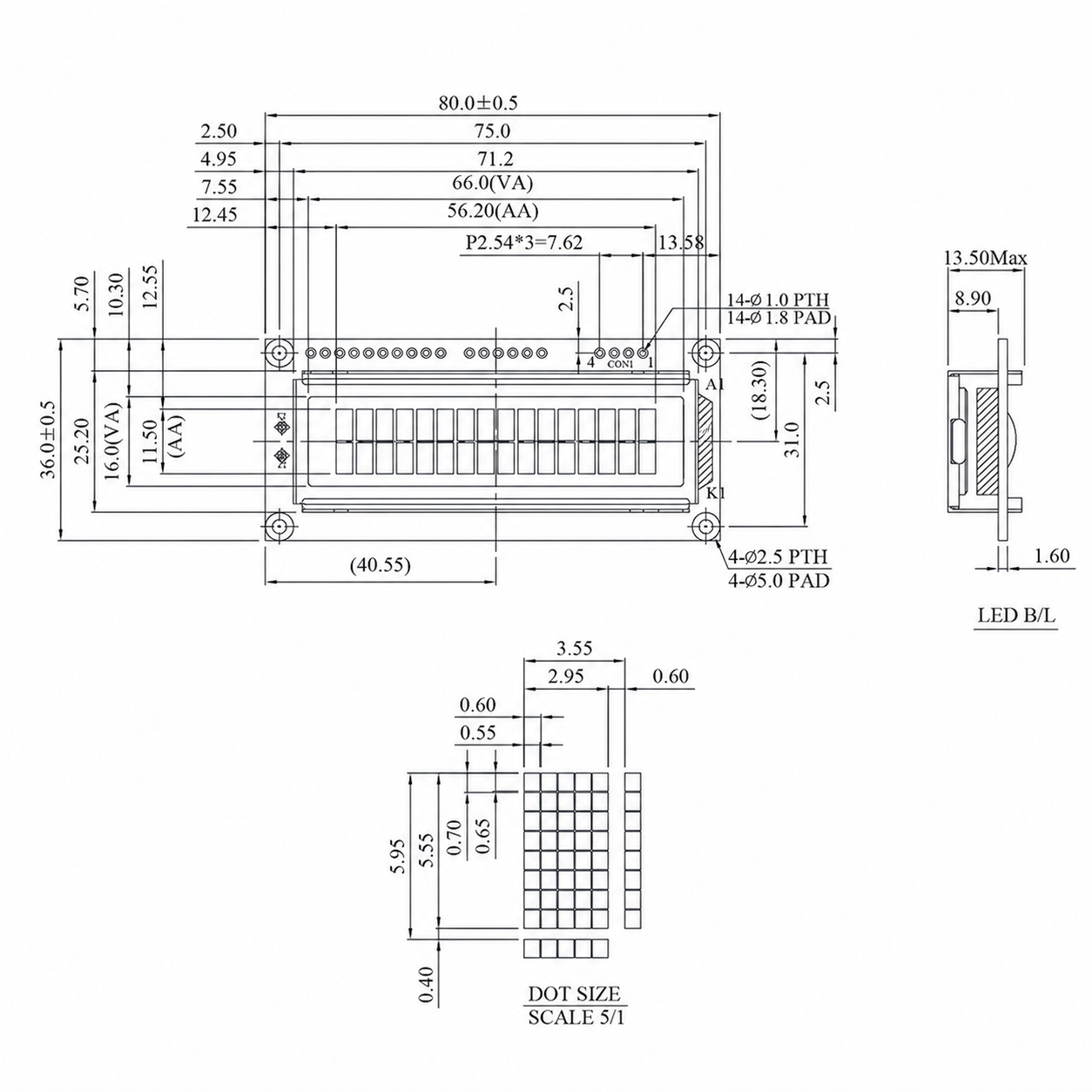

Габар. мм80.0 × 36.0 × 13.5 (MAX) mm
Рейтинг—
Активная область (мм)56.20 × 11.5 mm
Number of Characters16 Characters × 2 Lines
Module dimension80.0 × 36.0 × 13.5 (MAX) mm
View area66.0 × 16.0 mm
Активная область56.20 × 11.5 mm
Dot size0.55 × 0.65 mm
Dot pitch0.60 × 0.70 mm
Character size2.95 × 5.55 mm
Character pitch3.55 × 5.95 mm
Duty1/16
Backlight TypeLED
Controller ICST7066
ИнтерфейсUSB
Описание
Character LCD module STC1602BU. разрешение / format: 16 Characters × 2 Lines. Module: 80.0 × 36.0 × 13.5 (MAX) mm. интерфейс: USB.
Application areas：Industrial

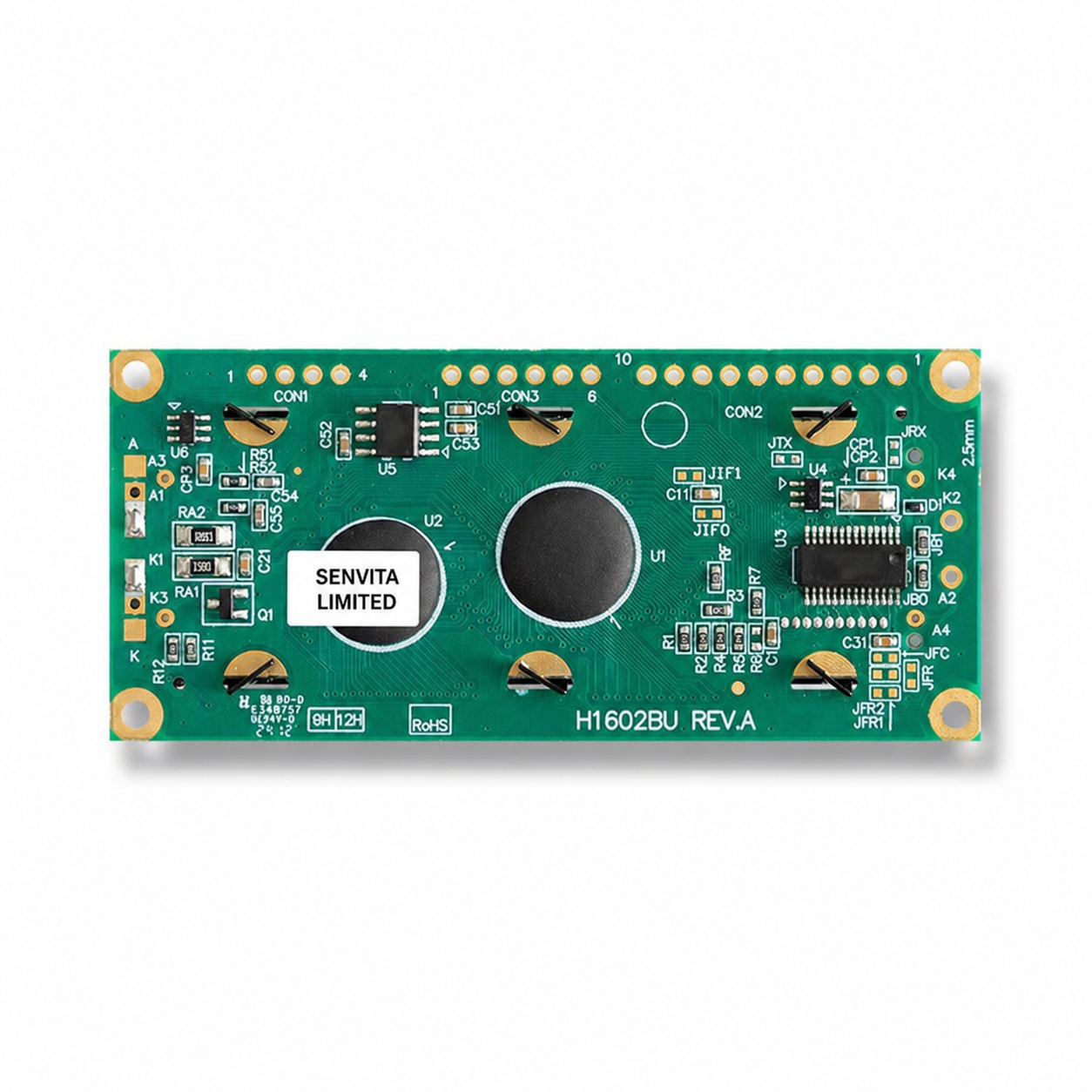

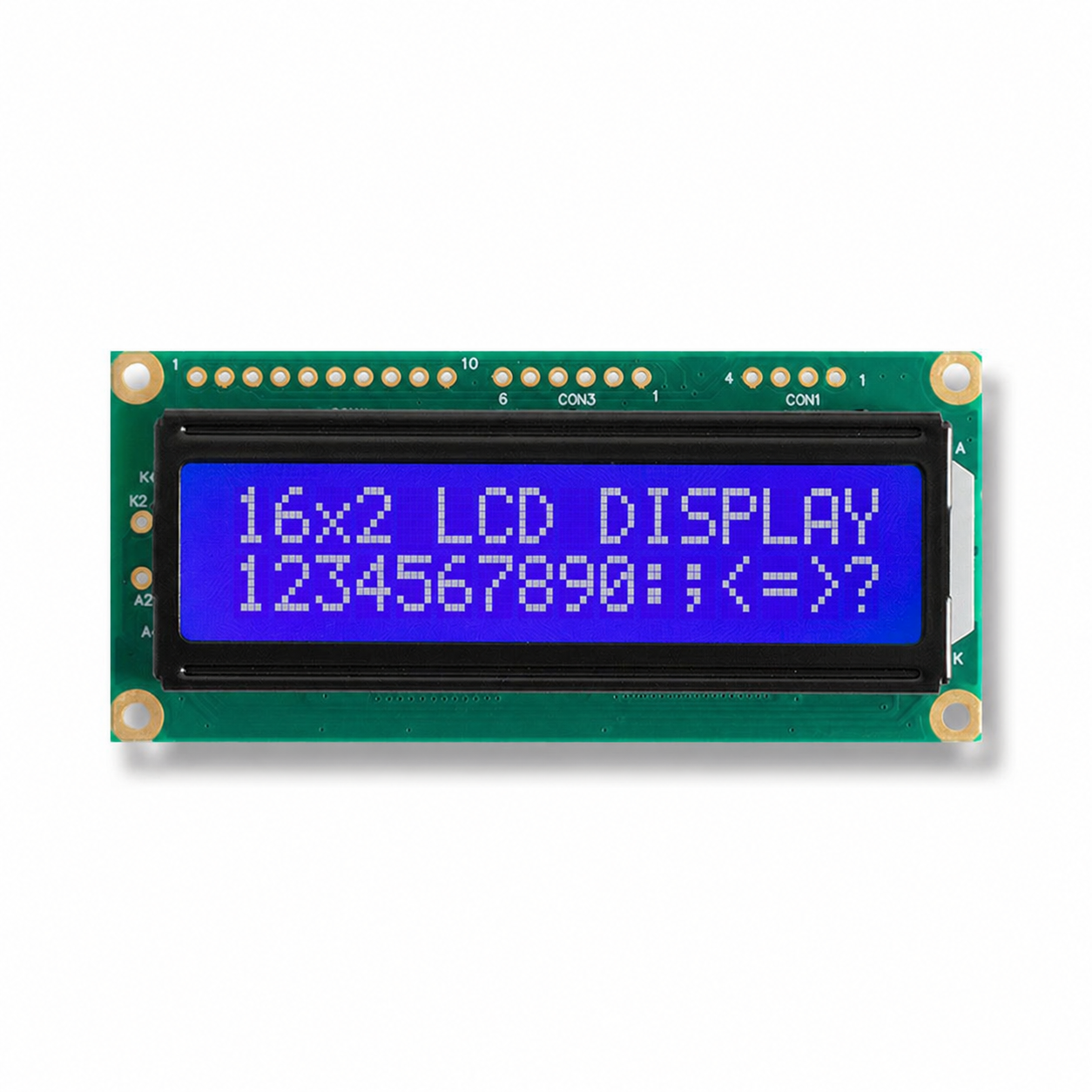

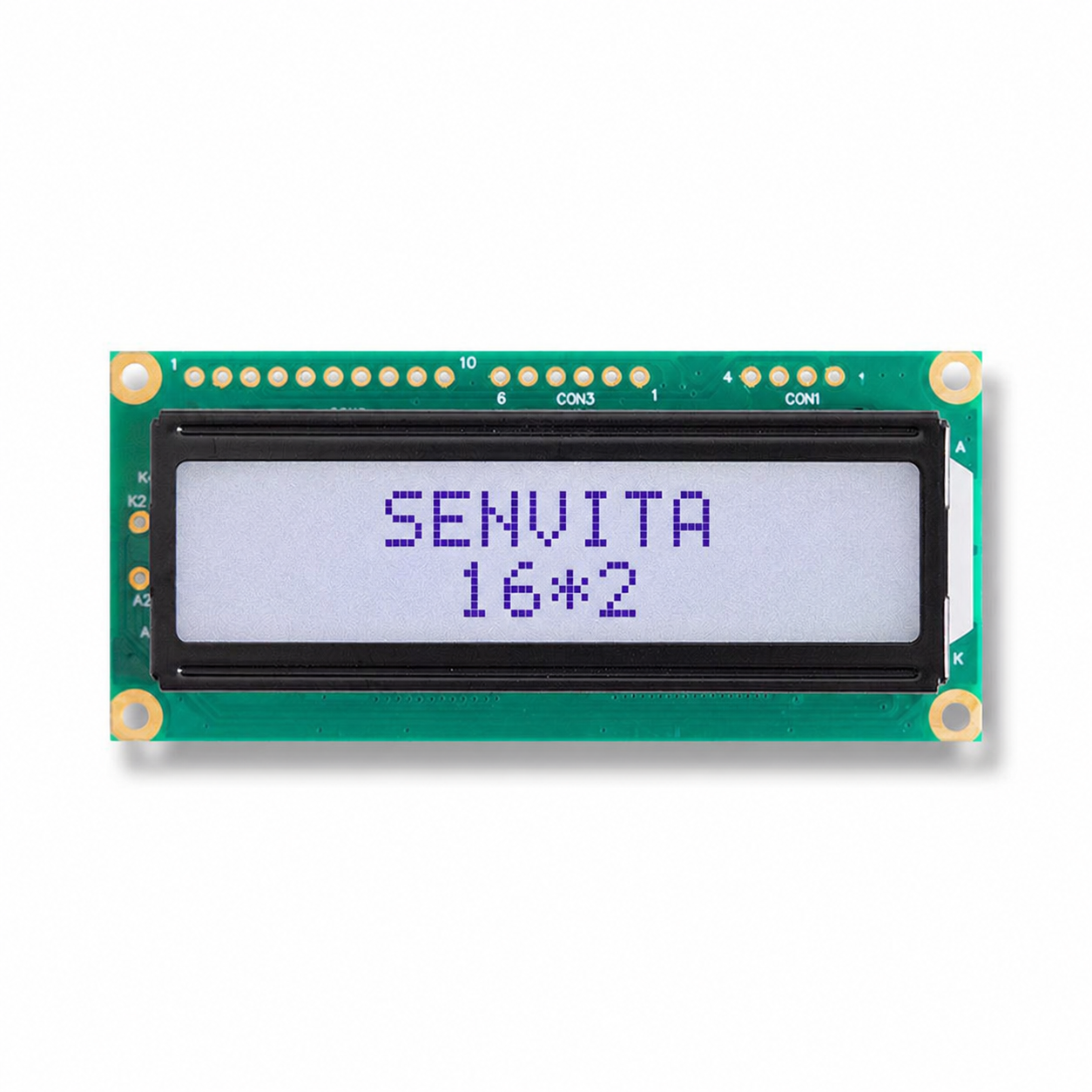

Product images
