Display module
STC2004L (Character LCD)
Артикул STC2004L
Размер7.0"
Разр.20 Characters x 4 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер7.0"
Разр.20 Characters x 4 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—

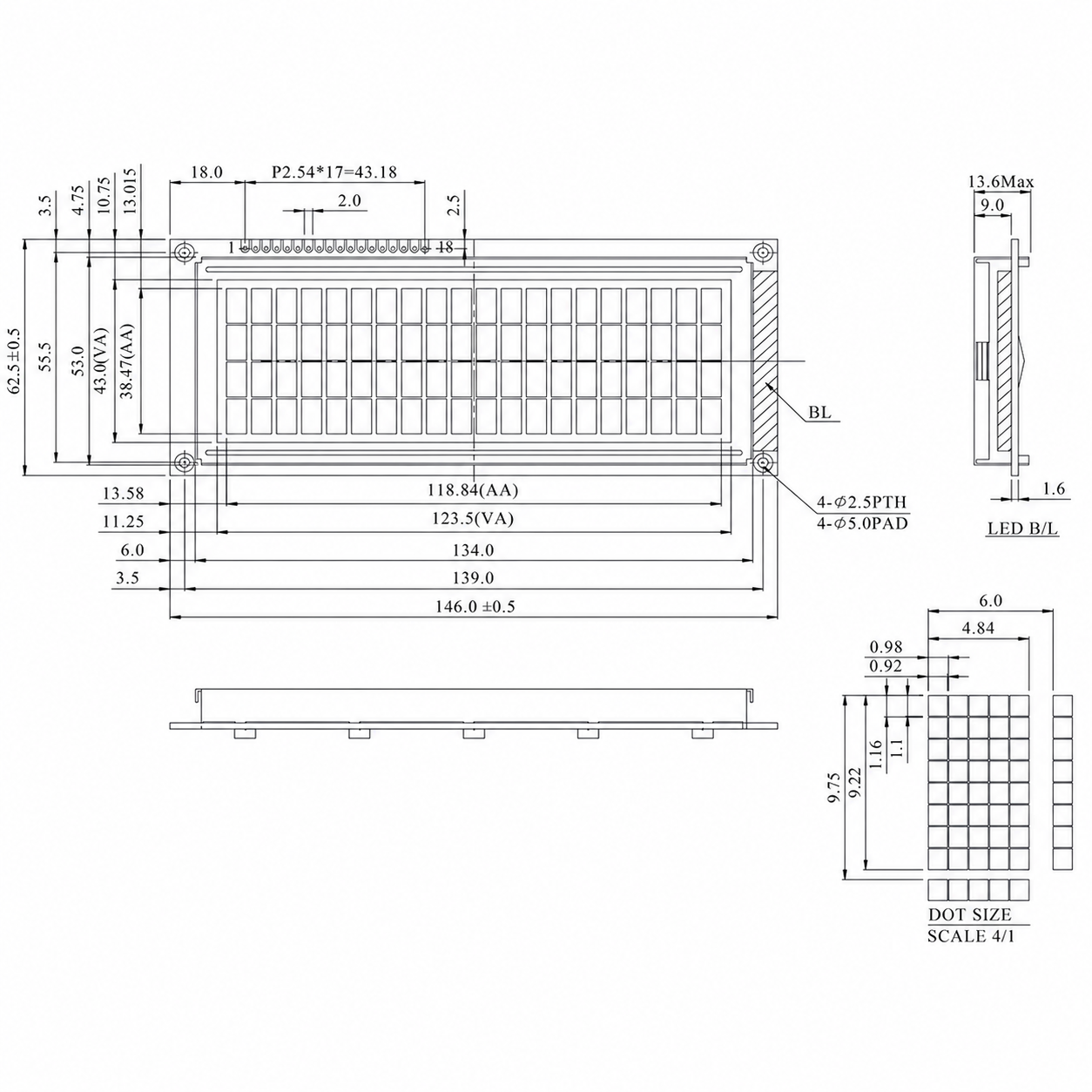

Габар. мм146.0 x 62.5 x 13.6 (MAX) mm
Рейтинг—
Активная область (мм)118.84 x 38.47 mm
Number of Characters20 Characters x 4 Lines
Module dimension146.0 x 62.5 x 13.6 (MAX) mm
View area123.5 x 43.0 mm
Активная область118.84 x 38.47 mm
Dot size0.92 x 1.1 mm
Dot pitch0.98 x 1.16 mm
Character size4.84 x 9.22 mm
Character pitch6.0 x 9.75 mm
Duty1/16
Backlight TypeLED
ICST7066U
Интерфейс6800
Описание
Character LCD module STC2004L. разрешение / format: 20 Characters x 4 Lines. Module: 146.0 x 62.5 x 13.6 (MAX) mm. драйвер: ST7066U. интерфейс: 6800.
Application areas：Industrial

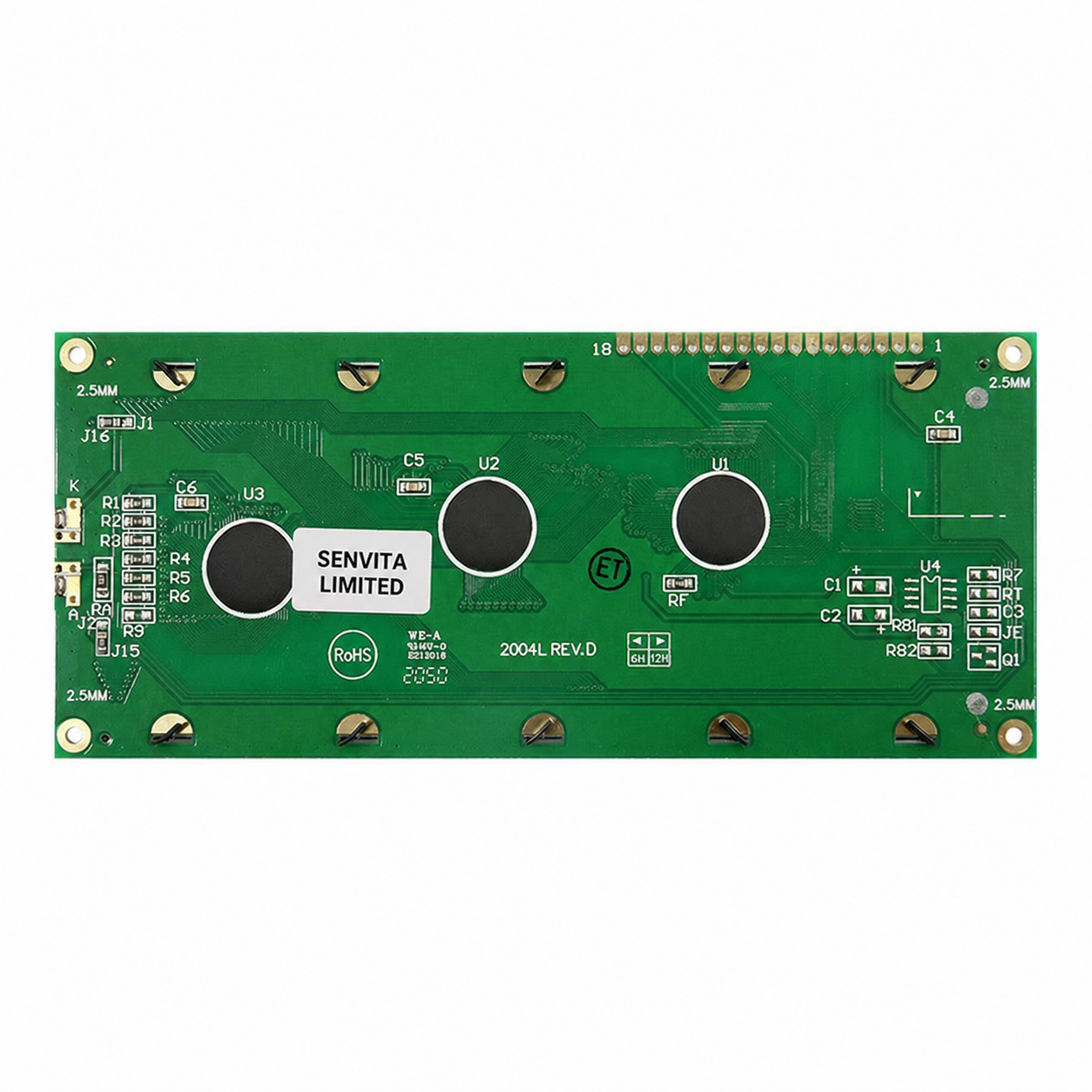

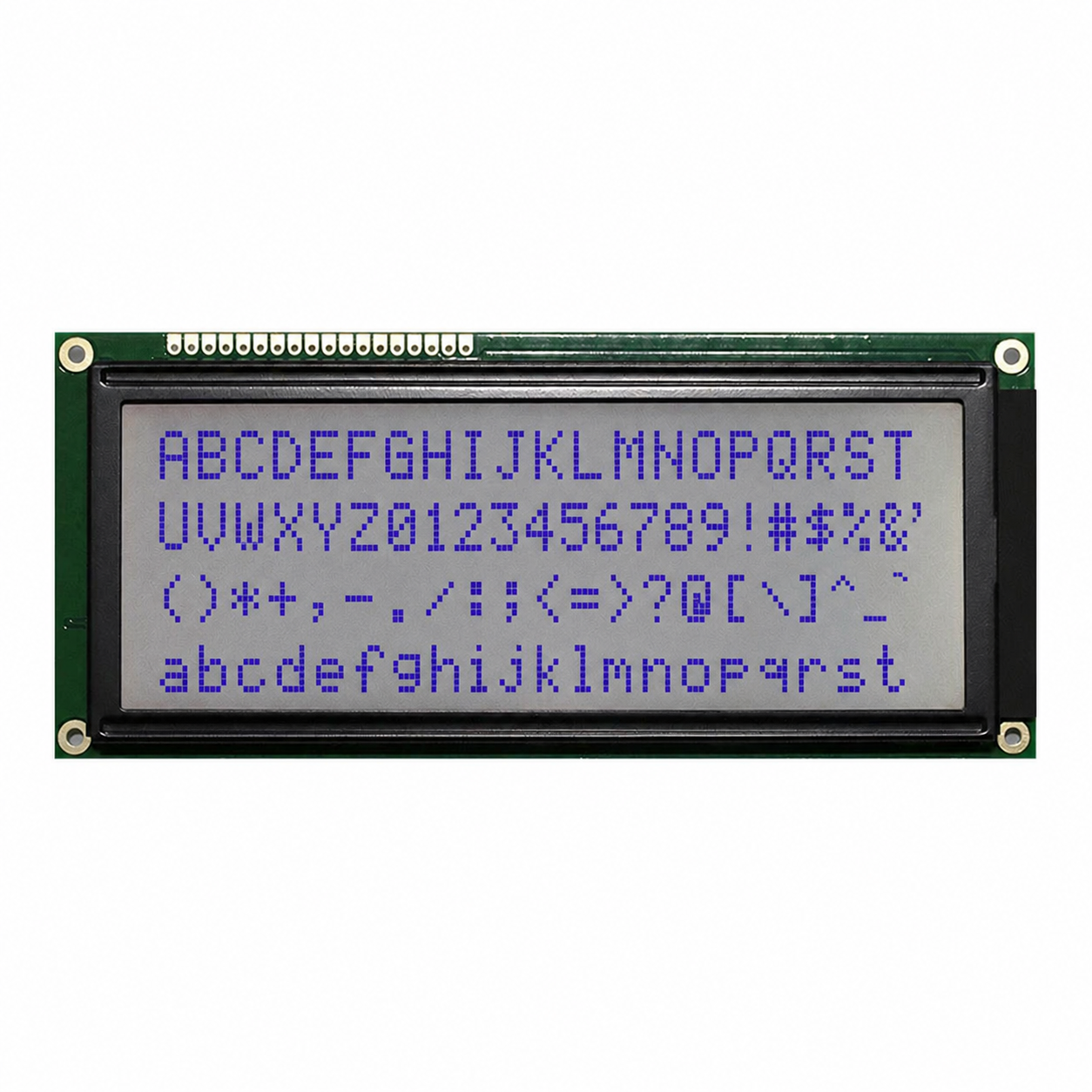

Product images
