Display module
STC2402A (Character LCD)
Артикул STC2402A
Размер5.0"
Разр.24 Characters x 2 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер5.0"
Разр.24 Characters x 2 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—

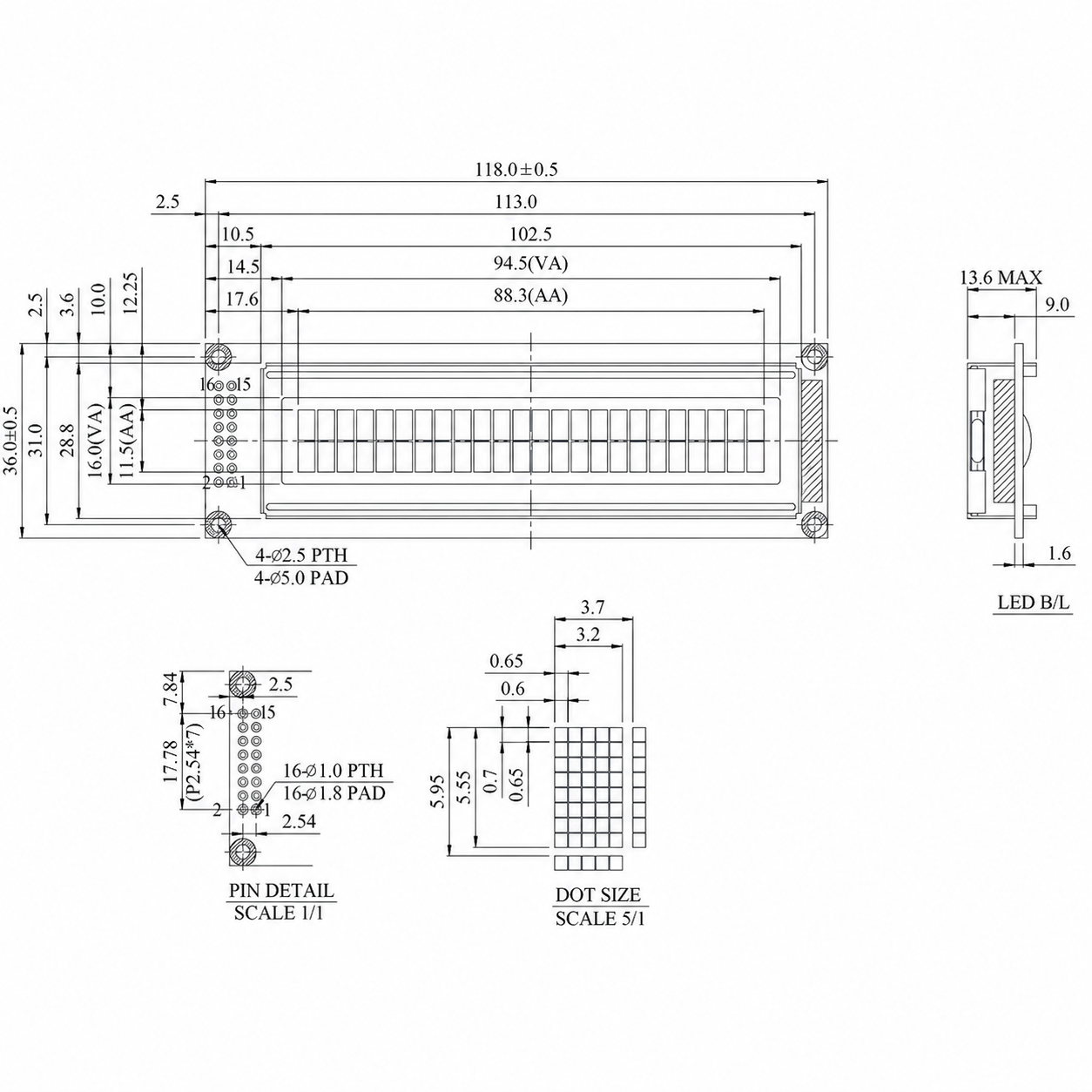

Габар. мм118.0 x 36.0 x 13.6 (MAX) mm
Рейтинг—
Активная область (мм)88.3 x 11.5 mm
Number of Characters24 Characters x 2 Lines
Module dimension118.0 x 36.0 x 13.6 (MAX) mm
View area94.5 x 16.0 mm
Активная область88.3 x 11.5 mm
Dot size0.60 x 0.65 mm
Dot pitch0.65 x 0.70 mm
Character size3.2 x 5.55 mm
Character pitch3.7 x 5.95 mm
Duty1/16
Backlight TypeLED
ICST7066U
Интерфейс6800
Описание
Character LCD module STC2402A. разрешение / format: 24 Characters x 2 Lines. Module: 118.0 x 36.0 x 13.6 (MAX) mm. драйвер: ST7066U. интерфейс: 6800.
Application areas：Industrial

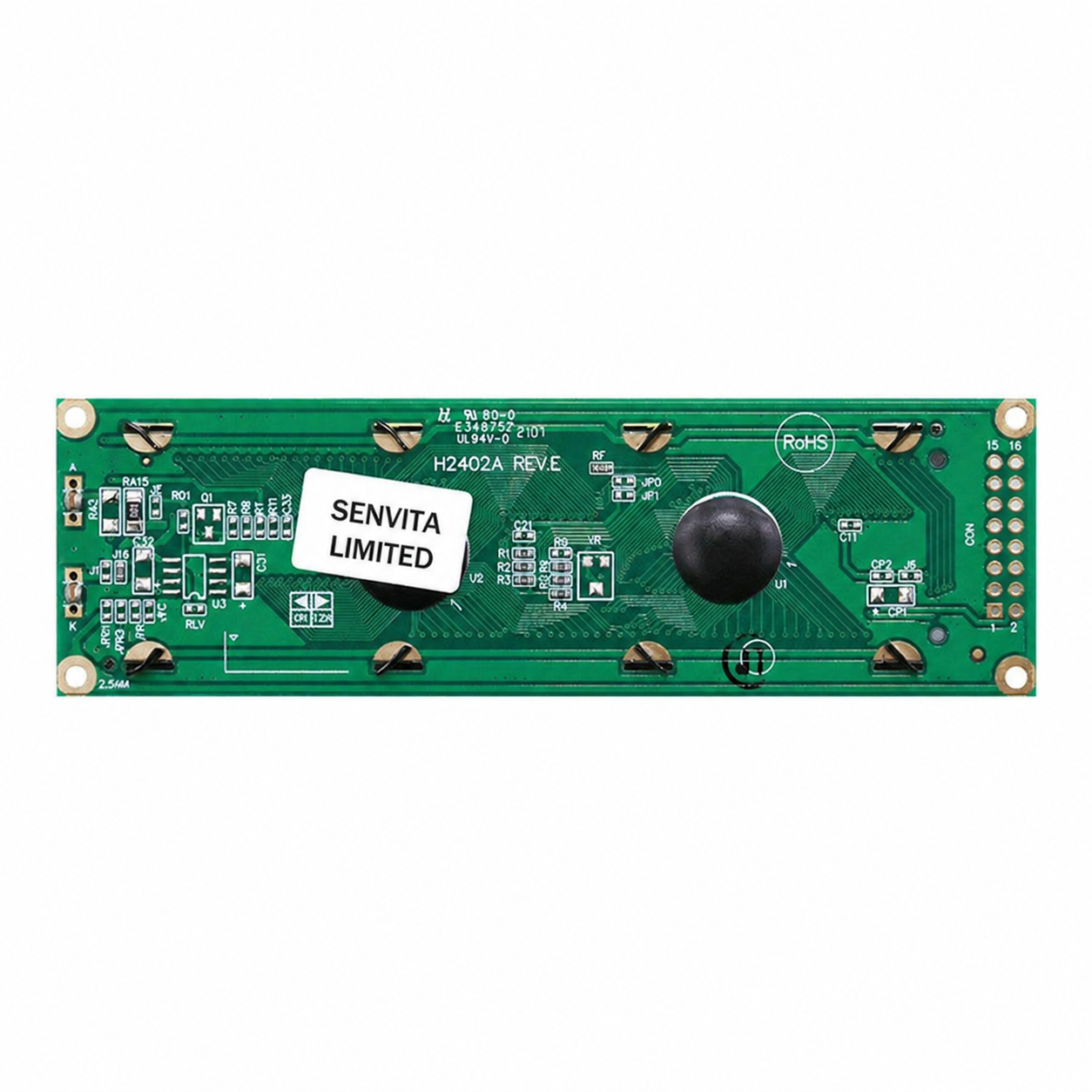

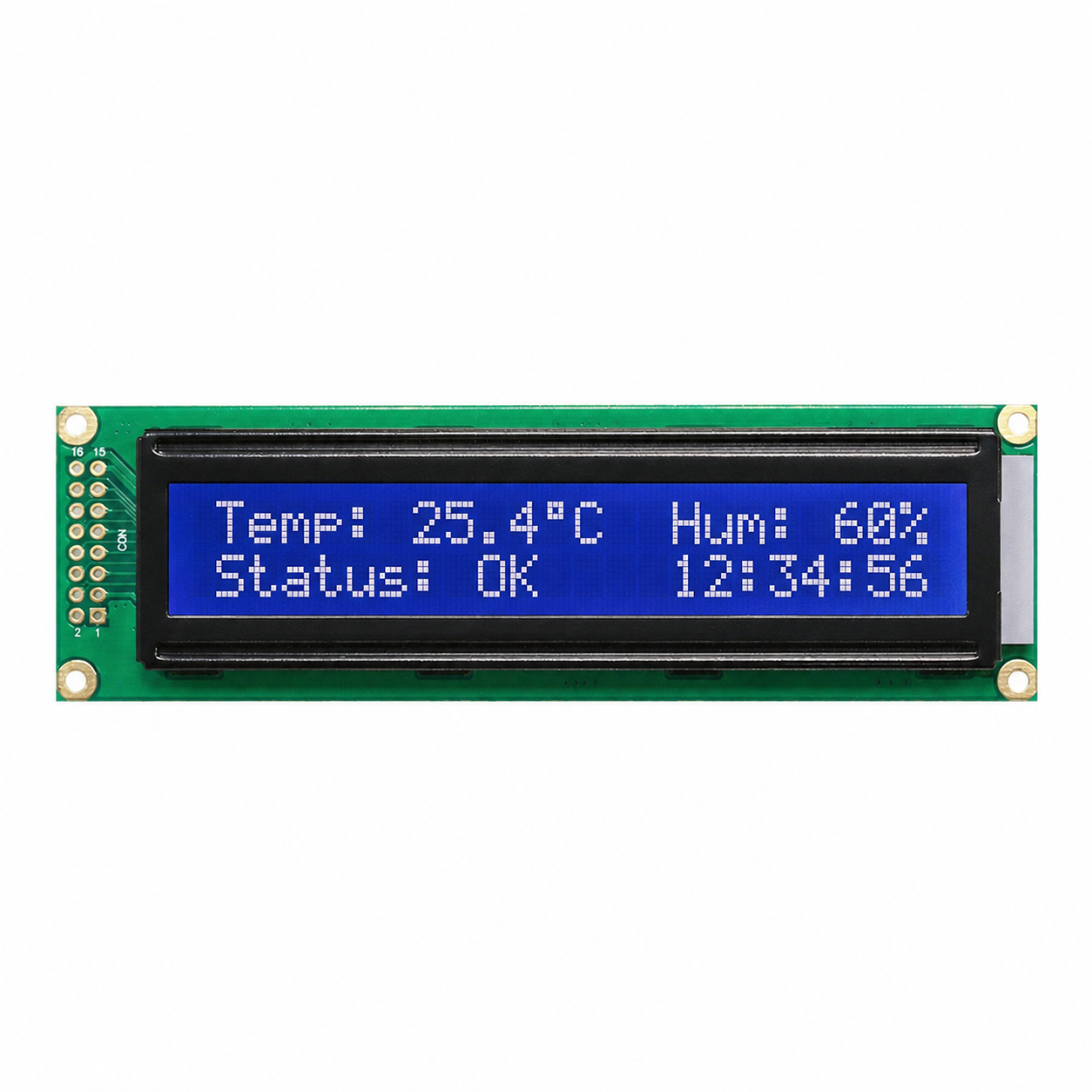

Product images
