Display module

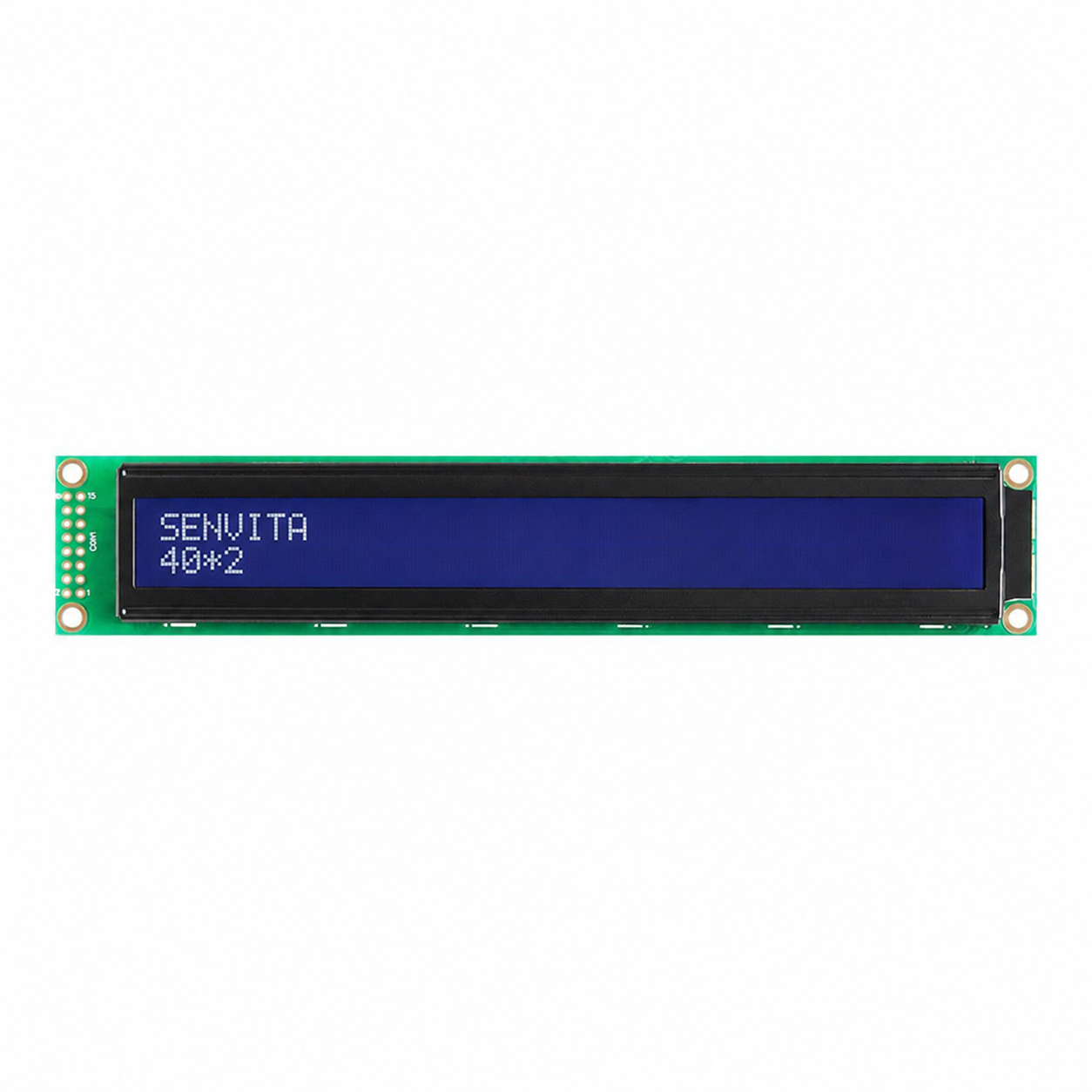

STC4002A (Character LCD)
Артикул STC4002A
Размер7.0"
Разр.40 Characters x 2 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер7.0"
Разр.40 Characters x 2 Lines
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—
Габар. мм182.0 x 33.5 x 13.6 (MAX) mm
Рейтинг—
Активная область (мм)147.5 x 11.5 mm
Number of Characters40 Characters x 2 Lines

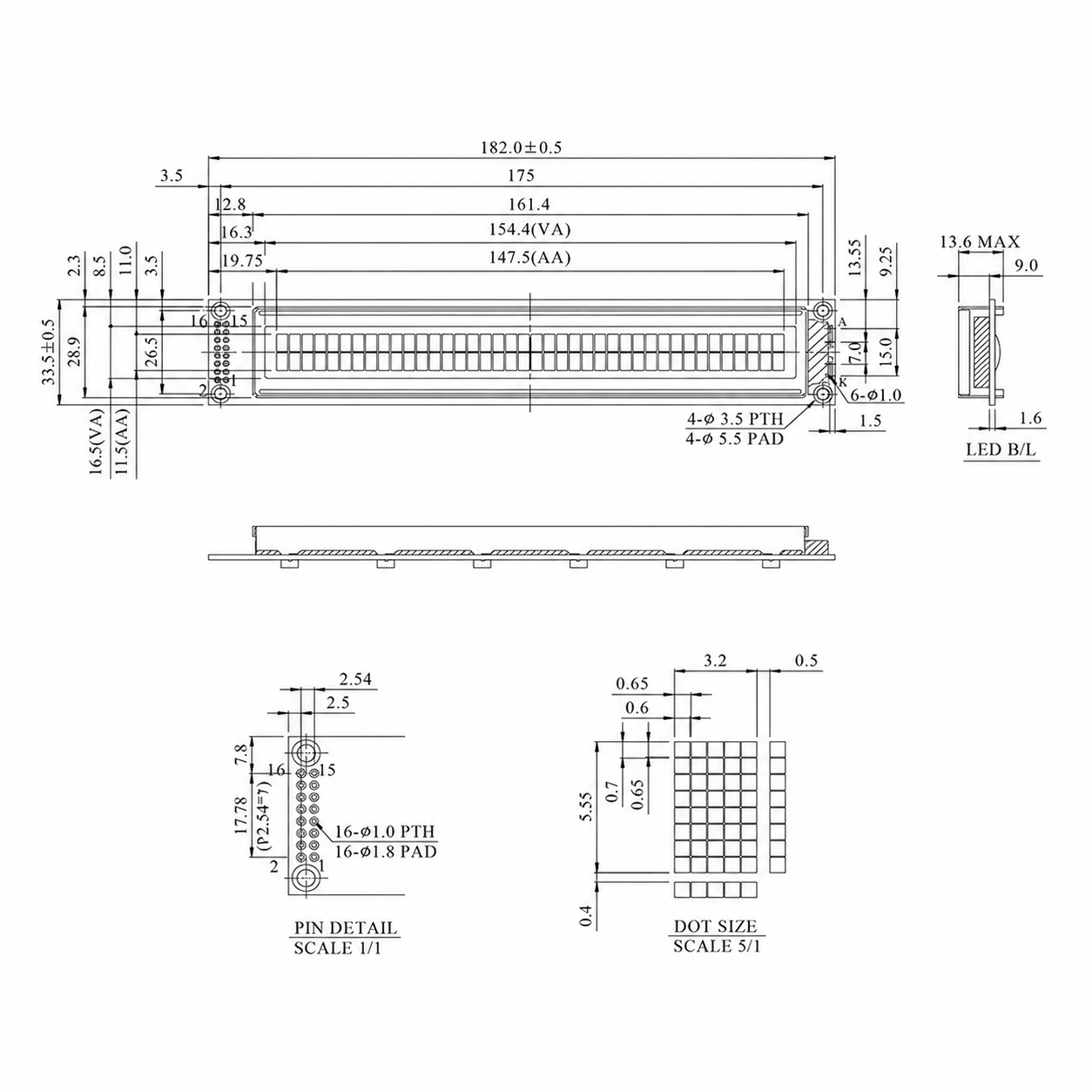

Module dimension182.0 x 33.5 x 13.6 (MAX) mm
View area154.4 x 16.5 mm
Активная область147.5 x 11.5 mm
Dot size0.60 x 0.65 mm
Dot pitch0.65 x 0.70 mm
Character size3.2 x 5.55 mm
Character pitch3.7 x 5.95 mm
Duty1/16
Backlight TypeLED
ICST7066U
Интерфейс6800
Описание
Character LCD module STC4002A. разрешение / format: 40 Characters x 2 Lines. Module: 182.0 x 33.5 x 13.6 (MAX) mm. драйвер: ST7066U. интерфейс: 6800.
Application areas：Industrial

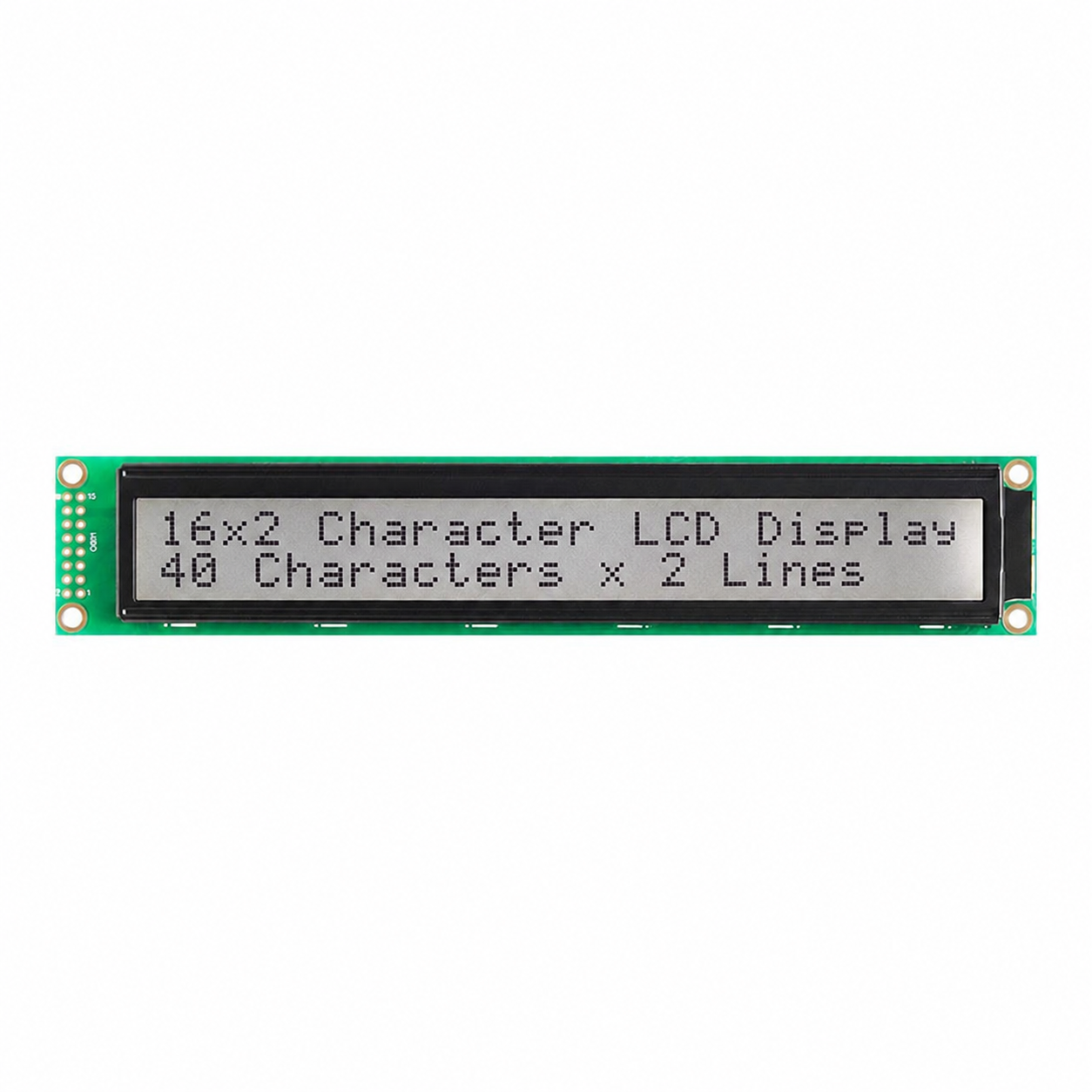

Product images

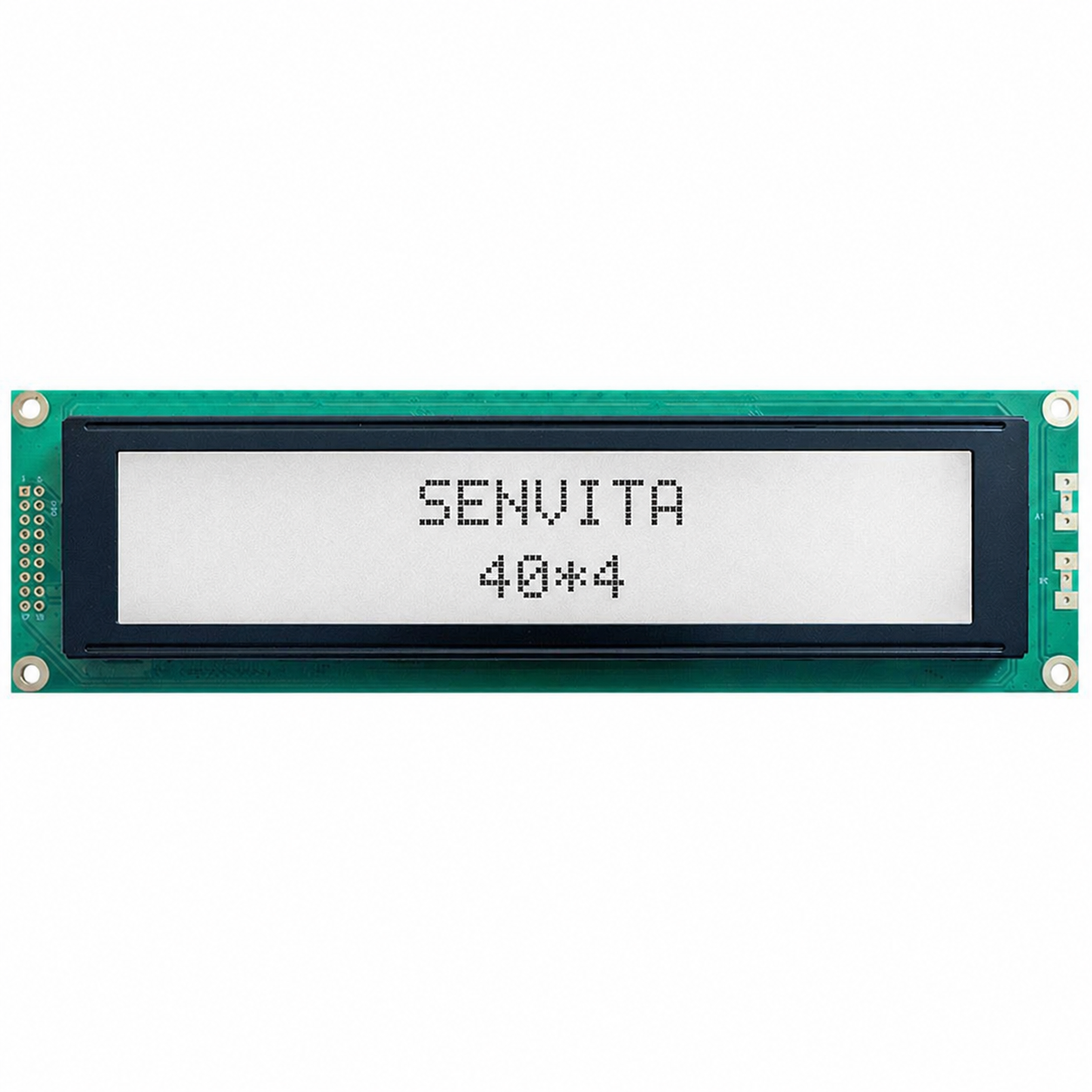

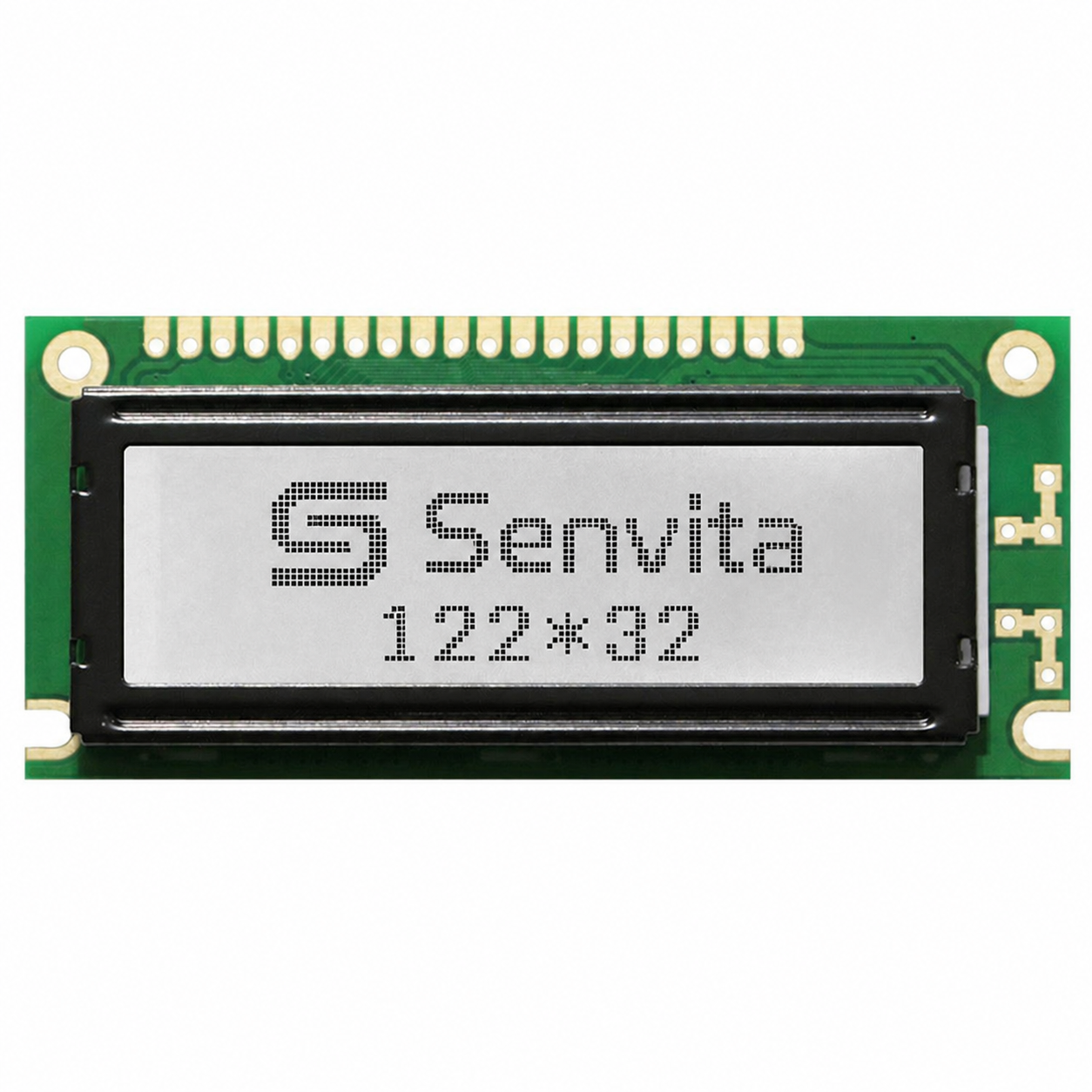

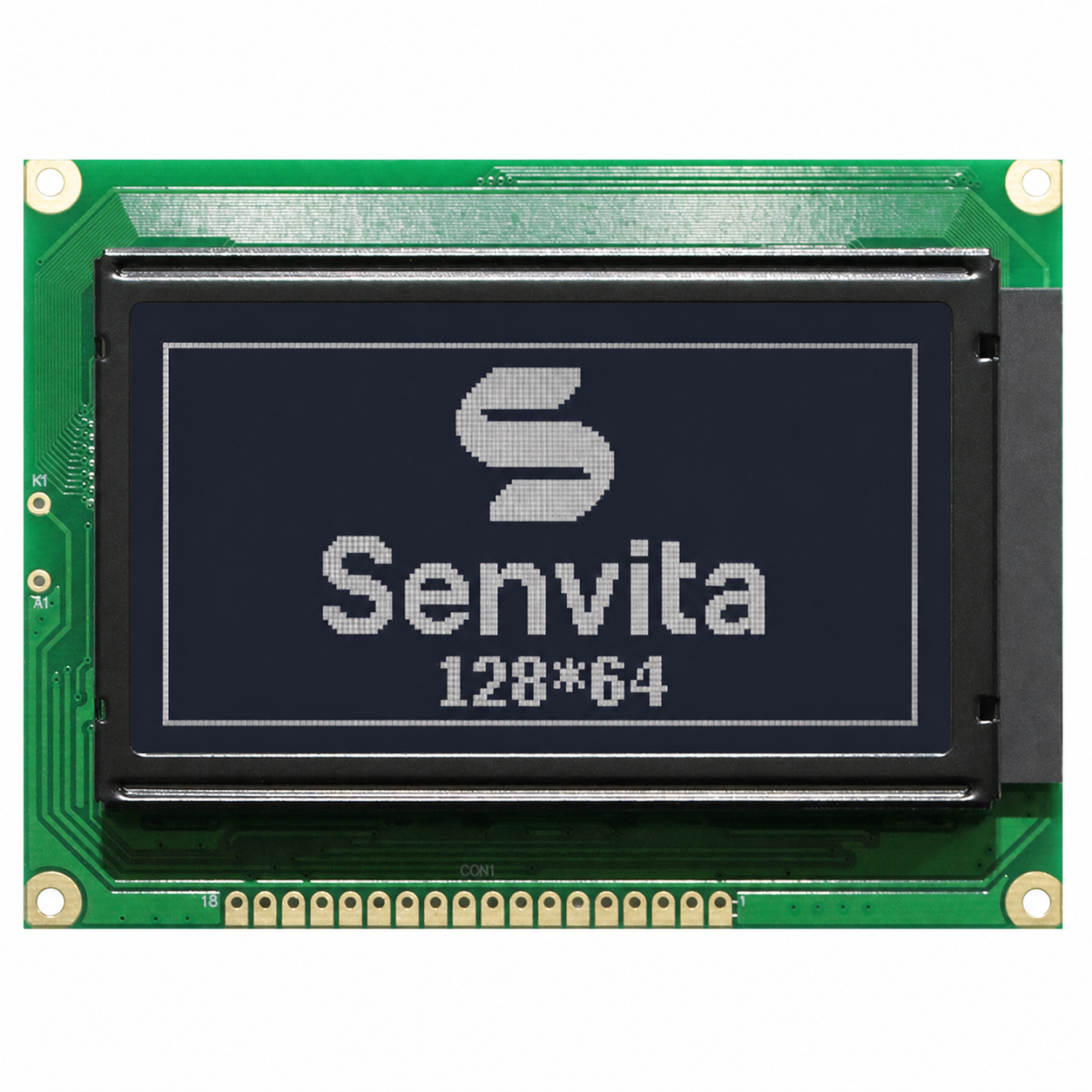

Related models
