Display module
STC4004A1 (Character LCD)
Артикул STC4004A1
Размер7.0"
Разр.40 characters x 4Lines
Инт.Параллель 6800
Драйвер ИСCustom
Ярк.LED backlight
ТачNo TP
Product highlights
Key engineering points buyers usually verify first.
TechnologyLCD Display Modules
Panel technology tuned for stable visual performance in embedded designs.
InterfaceПараллель 6800
Connectivity suited for embedded and smart device integration.
Operating range-20°C ~ +70°C
Designed for dependable operation across demanding environments.
OpticalLED backlight
Balanced brightness and viewing performance for product integration.
Спецификации
Размер7.0"
Разр.40 characters x 4Lines
Инт.Параллель 6800
Драйвер ИСCustom
Раб. темп.-20°C ~ +70°C
ТачNo TP
Ярк.LED backlight
VA—

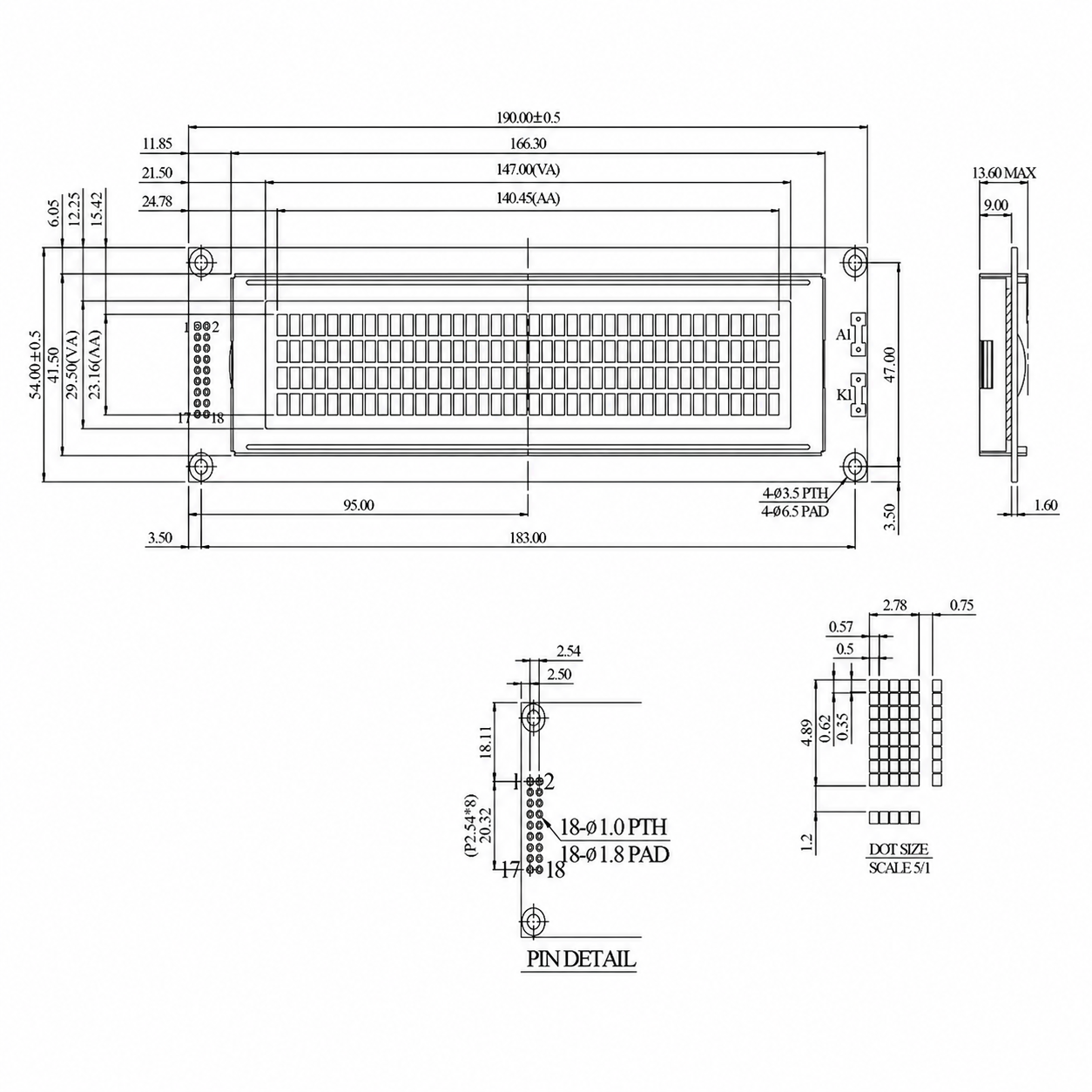

Габар. мм190.0 x 54.0 x 13.6 (MAX) mm
Рейтинг—
Активная область (мм)140.45 x 23.16 mm
Number of Characters40 characters x 4Lines
Module dimension190.0 x 54.0 x 13.6 (MAX) mm
View area147.0 x 29.5 mm
Активная область140.45 x 23.16 mm
Dot size0.50 x 0.55 mm
Dot pitch0.57 x 0.62 mm
Character size2.78 x 4.89 mm
Character pitch3.53 x 6.09
Duty1/16
Backlight TypeLED
ICST7066U
Интерфейс68 series
Описание
Character LCD module STC4004A1. разрешение / format: 40 characters x 4Lines. Module: 190.0 x 54.0 x 13.6 (MAX) mm. драйвер: ST7066U. интерфейс: 68 series.
Application areas：Industrial

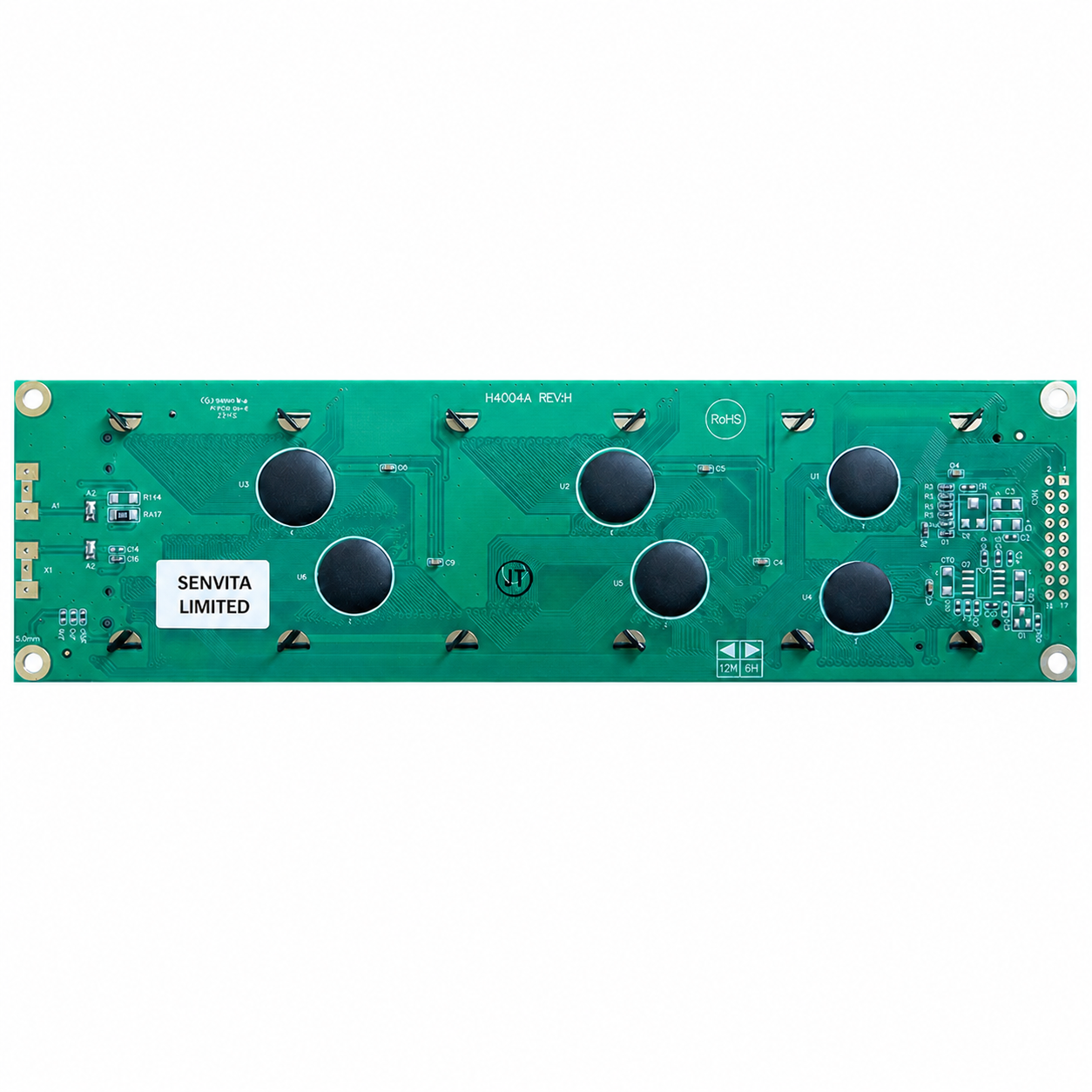

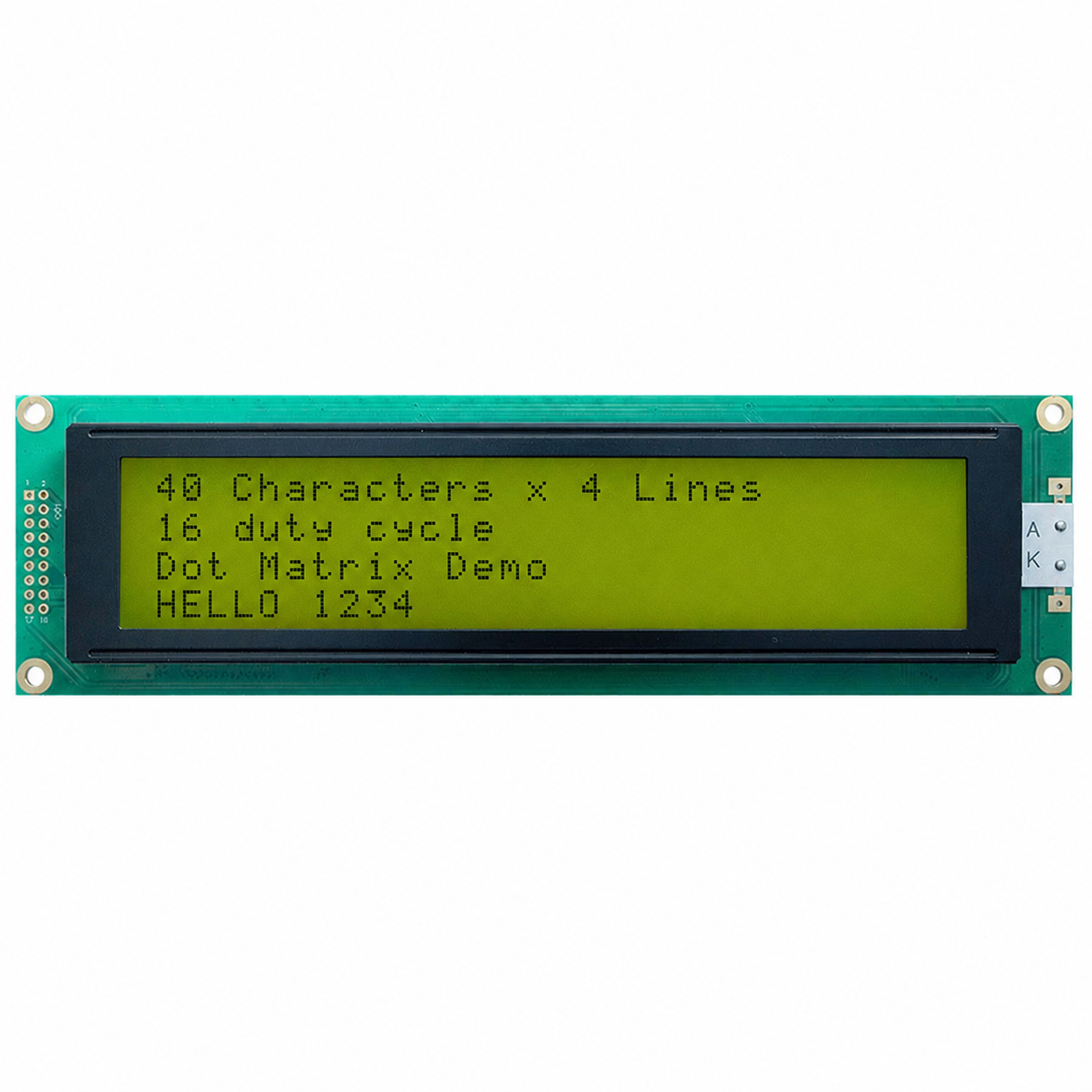

Product images
